Ball valve manufacturer

Pneumatic Y pattern 120 degree ball valve

  • Port size:DN15-DN300
  • Pressure:Class 150-Class 300,PN10-PN40
  • Structure:3 Way,Y type, 120 degree
  • Medium:W.O.G.
  • Temperature :-29~180℃ or higher
  • Body material:WCB, CF8,CF8M,etc.
  • Connection:Flanged end
  • Feature:Double acting or single acting is optional.
China pneumatic Y pattern 120 degree ball valve manufacturer, factory and supplier. Pneumatic Y pattern 120 degree ball valve is one type of special 3 way ball valve with 120 degree channel, the three channels of y type 3 way ball valve are designed to be included at an Angle of 120°each other, Pneumatic Y pattern 120 degree ball valve  can realize two different flow direction switching through the rotation of the ball between 120°.120 degree Y type 3 way ball valve includes the body, which is equipped with a sphere and has three port flow channel, the ball is equipped with open at both ends of the connection channel, the body of the import and export any move with the sphere's turn with connection channel conduction or closed, connecting channel any radial plane is and the port diameter and circle, the ends of the connection channel opening radial cross section method to the Angle is 120 °, fluid channel is equipped with three of the seat, seat hole structure of port, the seat toward one end of the sphere and sphere has a compact between the outer surface of blocks,The side of the pressing block toward the ball is provided with a contact surface matched with the surface of the outside circumference of the ball, and the other side of the pressing block is provided with an internal sealing structure between the seat.The Pneumatic Y pattern 120 degree ball valve  can realize two different flow direction switch, and the sealing structure is firm and durable, long service life, small fluid flow resistance, easy to clean the tee pipe.

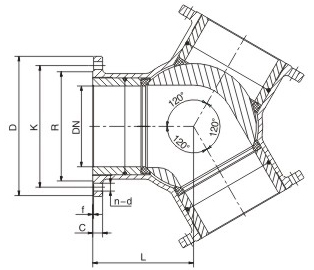

 120 degree Y type 3 way ball valve structure  120 degree Y type 3 way ball valve  120 degree Y type 3 way ball valve

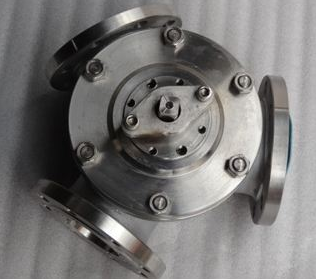

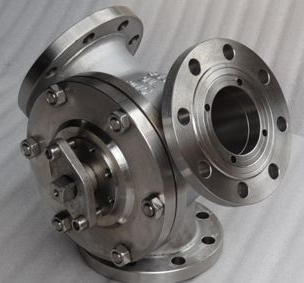

 120 degree Y type 3 way ball valve structure  120 degree Y type 3 way ball valve side face  120 degree Y type 3 way ball valve top face

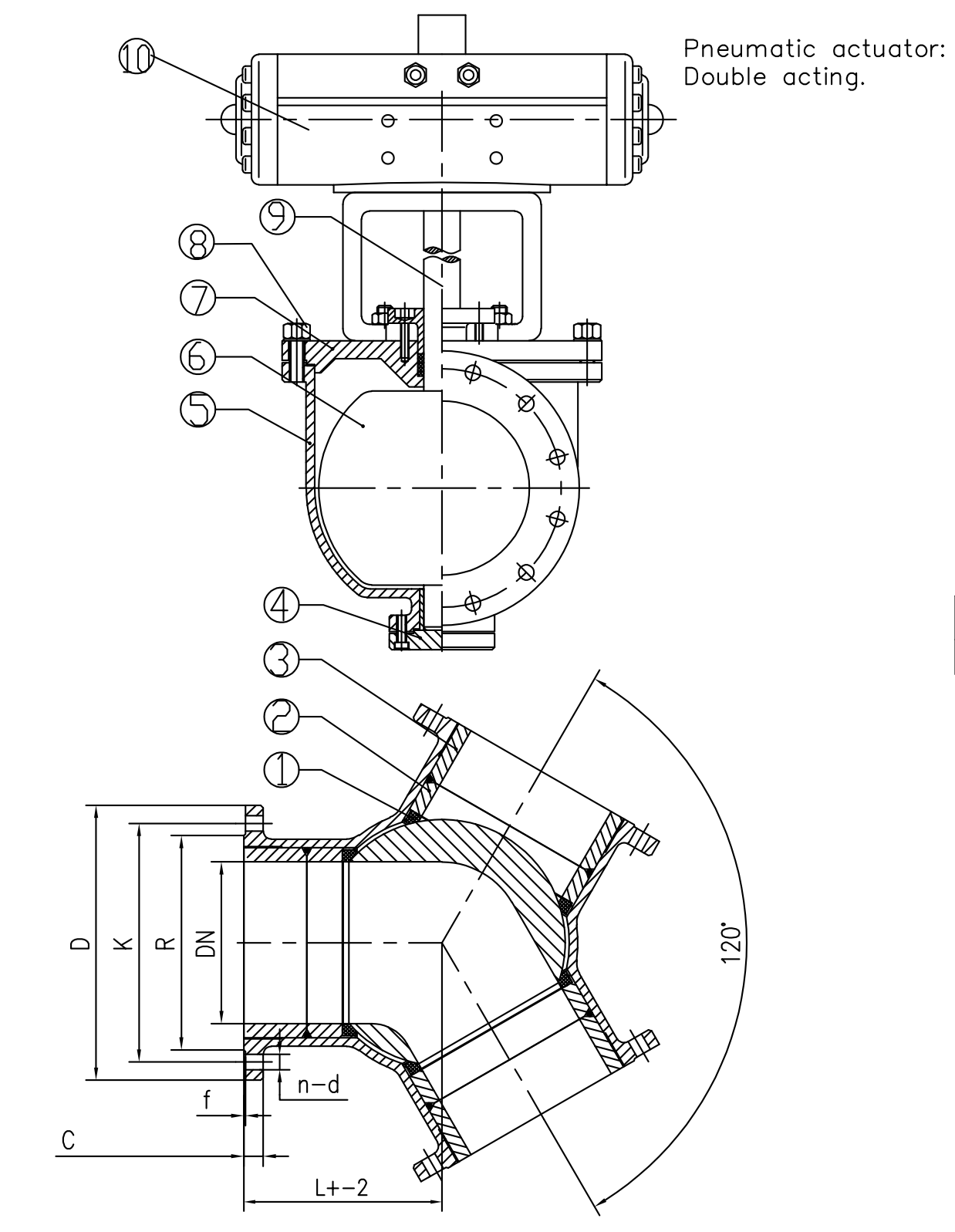

Pneumatic Y pattern 120 degree ball valve structure

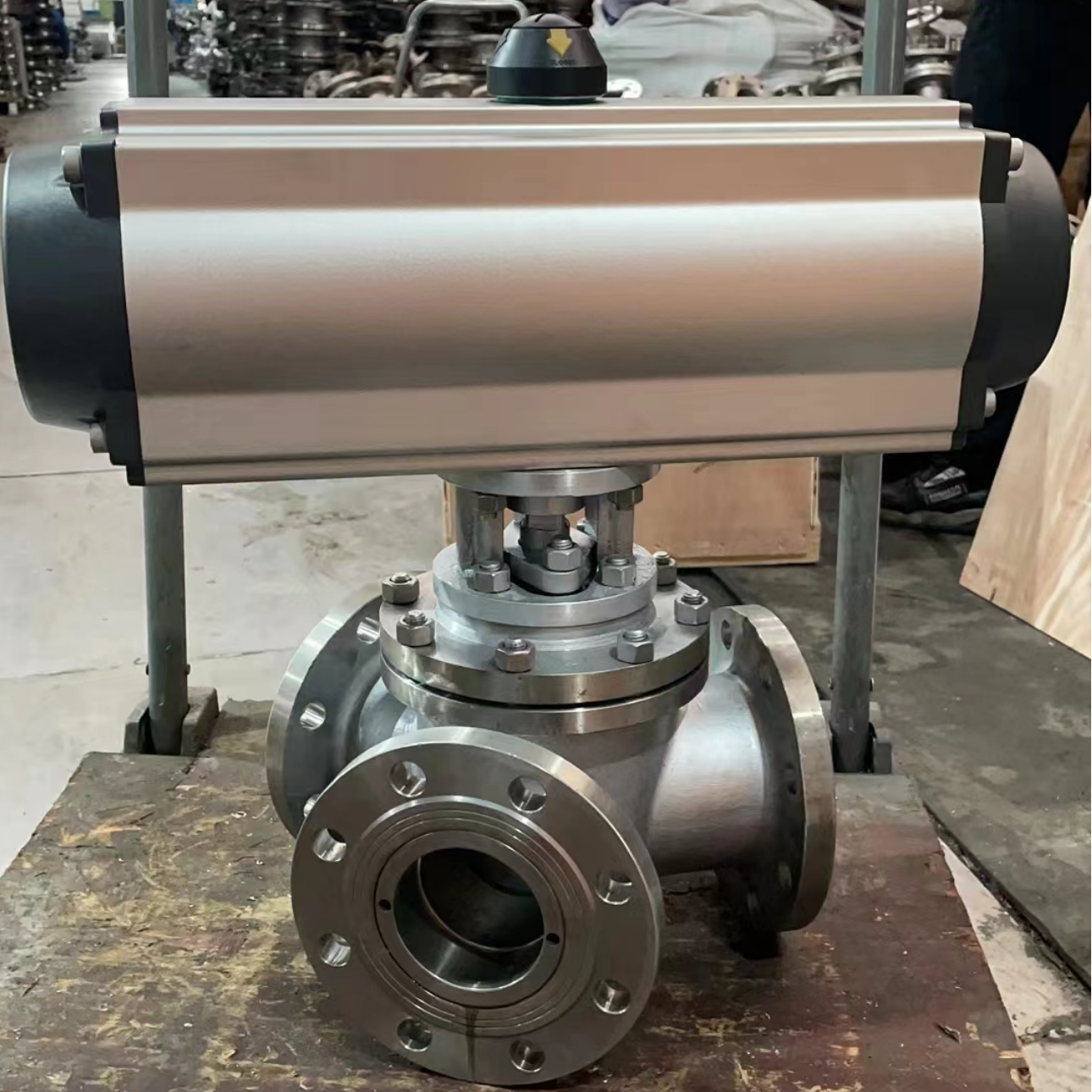

 Pneumatic Y pattern 120 degree ball valve

Pneumatic Y pattern 120 degree ball valve  dimension( on base of PN10, If you need other pressure and standard, please consult us)
DN L D K R C f n-d
50 110 160/165 125 100 20 3 4-18
65 130 180/185 145 120 20 3 4-18
80 150 195/200 160 135 20 3 8-18
100 170 215/220 180 155 22 3 8-18
125 190 245/250 210 185 22 3 8-18
150 210 280/285 240 210 24 3 8-23
200 245 335/340 295 265 24 3 12-23
250 290 405 355 320 30 3 12-25

Pneumatic Y pattern 120 degree ball valve pneumatic actuators according to the action type divided into single action and double action two types, the single action type is characterized by once the power source failure, the ball valve will be in the control system requirements of the state. double functions: ventilation on, ventilation off, air source fault to maintain the current position,which can install reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve accessories according to client’s requirement.
