Ball valve manufacturer

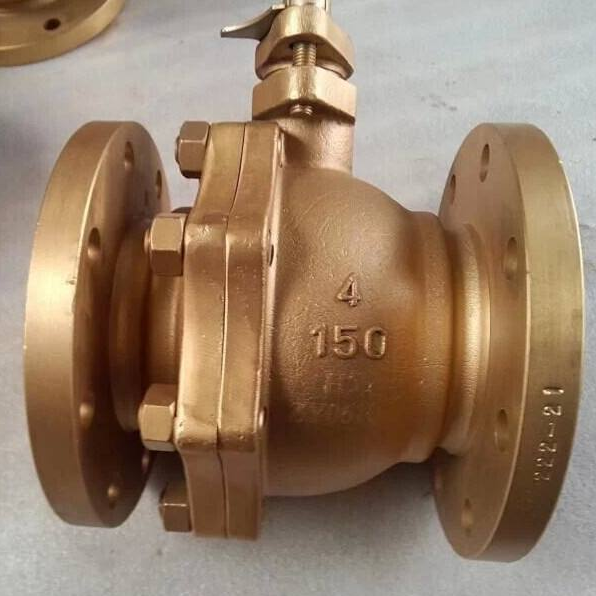

Full port flange bronze ball valve

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:Bronze or others
  • Connection:Flange or others
  • Feature:For sea water or corrisive medium
Full port flange bronze ball valve introduction:
Full port flange bronze ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; Full port flange bronze ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.Full port flange bronze ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

Full port flange bronze ball valve specification:
Product Name Full port flange bronze ball valve
1. Material Bronze
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB~1500LB
5. Connection Ends Flange
6. Working Temp.  -29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Full port flange bronze ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Full port flange bronze ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Full port flange bronze ball valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
