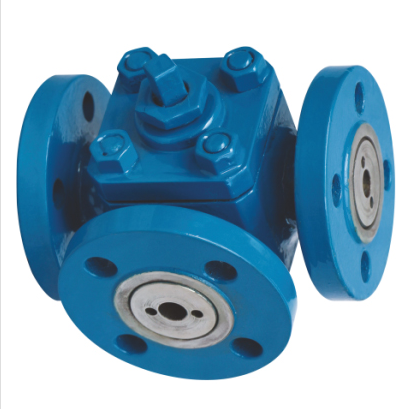

Top entry 3 way ball valve

Top entry 3 way ball valve introduction
The biggest characteristic of Top entry 3 way ball valve is that the ball is loaded from the upper part of the valve body, easy to maintain, after the pressure relief of the system, there is no need to dismantle the entire top entry 3 way ball valve body to can be checked and maintained. Top entry 3 way ball valve is compact structure, opening and closing rapidly, either his can be used as entrance and no leakage, Top entry 3 way ball valve can be made into L type 3 way ball valve, also can be made into T type 3 way ball valve, Top entry 3 way ball valve is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, papermaking, food, such as steel pipe system in the flow direction of medium to switch and shunt for medium or mixed fluid.

Top entry 3 way ball valve is T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Top entry 3 way ball valve Specification:

Product Name	Top entry 3 way ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, A105,etc.
2. Size	1/2~24 inch ( DN15~DN600)
3. Port	Full Port
4. Working Pressure	150LB~600LB,PN16-PN100
5. Connection Ends	Flange
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
9. Inspection & Testing	According to API598,JB/T9092
