China 3 way ball valve manufacturer

Shanghai Huixuan is China 3 way ball valve manufacturer and factory mainly produce pneumatic 3 way ball valve,electric 3 way ball valve,floating 3 way ball valve,high pressure 3 way ball valve,cryogenic 3 way ball valve,PTFE lined 3 way ball valve,cast steel 3 way ball valve,stainless steel 3 way ball valve,forged steel 3 way ball valve and other 3 way ball valves.

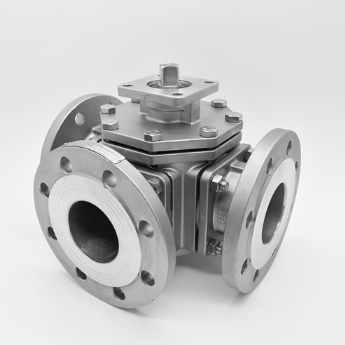

3 way ball valve is on base of full bore design with T port or L port design.3 way ball valve can choose T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

3 way ball valve Specification:

Product Name	3 way ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, A105,etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092


3 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

3 way ball valve flow direction
