Ball valve manufacturer

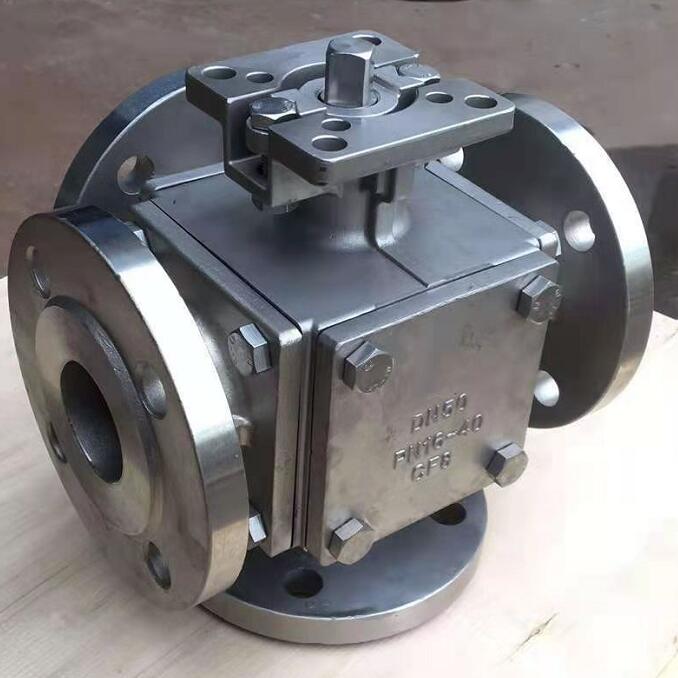

Stainless steel four way ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:4 way:T Port or L port,X port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:ISO 5211 mounting pad is optional

Shanghai Huixuan is China Stainless steel four way ball valve manufacturer,factory and supplier produce Four Way Ball Valve in Carbon Steel, Stainless Steel and others metal on special request. Stainless steel four way ball valve selection covers Full Port (Full Bore), Flanged End, with Manual Hand Lever, Gear Box, Pneumatic Actuator, Electrical Actuator Operation.

Stainless steel four way ball valve has an L / T / X (Double L) / Straight Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure.

 T Port Four Way Ball Valve connect any three ports, L Port Four Way Ball Valve connect any two side right angle port, X Port Four Way Ball Valve in side have two L Shaped Port in the ball that do not interconnect, it is also called as X Port Ball Valve.

We also offering four way ball valve with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated four way Ball Valve, Pneumatic Actuated Four Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated  four Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port Four Way Ball Valve Pneumaticaly.

Stainless steel four way ball valve Specification:
Product Name T port three position 4 way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

Stainless steel four way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Stainless steel four way ball valve structure
Stainless steel four way ball valve structure


Stainless steel four way ball valve dimension (mm)
Stainless steel four way ball valve dimension
  (Note,the dimension is on base of PN16, if other pressure class, need consult)
