Ball valve manufacturer

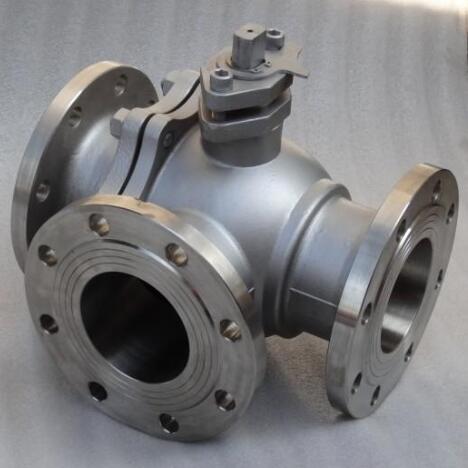

China 3 way t port ball valve supplier

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:T port 3 way
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:T port or L port is optional
China 3 way t port ball valve supplier,China 3 way ball valve factory,3 way ball valve manufacturer,company and supplier for pneumatic 3 way ball valve,electric 3 way ball valve,L port 3 way ball valve,T port high pressure 3 way ball valve,PTFE lined 3 way ball valve,cast steel 3 way ball valve,stainless steel 3 way ball valve,forged steel 3 way ball valve and other 3 way ball valves.

China 3 way t pot ball valve is on base of full bore design with T port design.3 way ball valve can choose T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

China 3 way T port ball valve Specification:
Product Name China 3 way T port ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, A105,etc.
2. Size 1/2~24 inch ( DN15~DN600)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

China 3 way T port ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
