Ball valve manufacturer

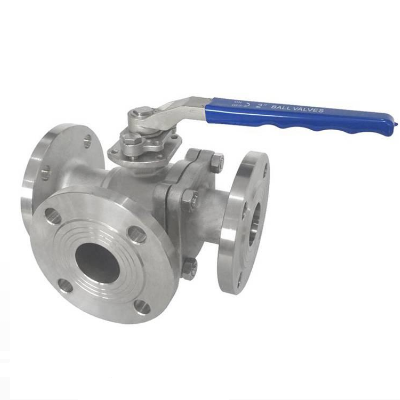

304 316 CF8 CF8M 3 way ball valve

  • Port size:1/2'' ~ 12''( 15mm ~ 300mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Structure:3 way:T port of L port
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃
  • Body material:CF8 CF3 CF8M CF3M or others
  • Connection:Flange,thread and SW is optional
  • Feature:Manual,pneumatic,electric actuator is optional
304 316 CF8 CF8M 3 way ball valve introduction
304 316 CF8 CF8M 3 way ball valve is on base of full bore design with CF8 CF8M CF3 CF3M or other material. 304 316 CF8 CF8M 3 way ball valve can choose T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

304 316 CF8 CF8M 3 way ball valve Specification:
Product Name 304 316 CF8 CF8M 3 way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

304 316 CF8 CF8M 3 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

3 way ball valve flow direction
 3 way ball valve flow direction



Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
