Ball valve manufacturer

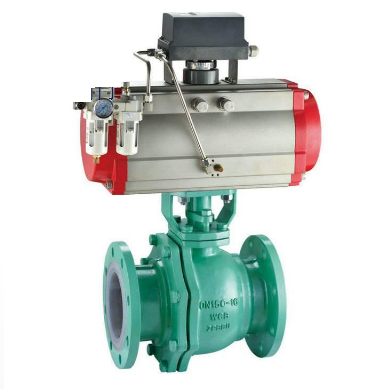

Pneumatic actuated PTFE lined ball valve

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN10 ~ PN16、 CLASS 150LB
  • Structure:Full lined
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Single acting or double acting is for choice
Pneumatic actuated PTFE lined ball valve introduction
Pneumatic actuated PTFE lined ball valve is made up of double pneumatic piston actuator (single) effect and the PTFE lined ball valve, Pneumatic actuated PTFE lined ball valve is powered by compressed air valve rod drives the valve core in the valve body rotate 90 °.Pneumatic actuated PTFE lined ball valve can be used for switch or adjust, Pneumatic actuated PTFE lined ball valve is widely used in various types of industrial liquid and gas in the pipeline transportation (including steam), especially with severe corrosive medium use occasions, such as sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, alkali and aqua regia has a strong corrosive medium.

Pneumatic actuated PTFE lined ball valve Product Range:
-Valve size: 1/2" ~ 16" (DN15-DN400)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel+FEP PTFE PFA lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic actuated PTFE lined ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic actuated PTFE lined ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
Pneumatic ball valve accessories


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
