Ball valve manufacturer

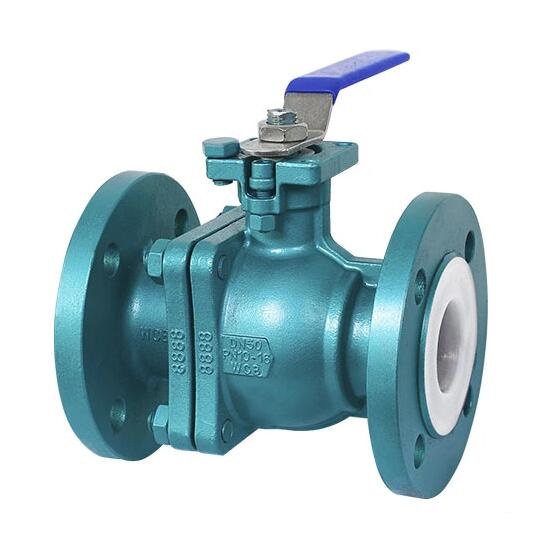

FEP PTFE PFA Lined ball valve factory and supplier

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN16 CL150
  • Structure:Full FEP PTFE PFA lined
  • Medium:Corrosive medium
  • Temperature :-29~150℃
  • Body material:WCB,CF8,CF8M+FEP PTFE PFA lined
  • Connection:Flange
  • Feature:China FEP PTFE PFA Lined ball valve factory and supplier
FEP PTFE PFA Lined ball valve factory and supplier,China FEP PTFE PFA lined ball valve manufacturer,China FEP PTFE PFA lined ball valve is full PTFE,FEP,PFA lined structure,FEP PTFE PFA Lined ball valve has extremely high chemical stability and FEP PTFE PFA Lined ball valve can be used for any strong corrosion which can be divided into two (two) and three (three) two types of structure, in addition to the fluid resistance is small, fast opening and closing speed, simple structure.

China FEP PTFE PFA lined ball valve performance
-Ball Valve size: 1/2" ~ 12" (DN15-DN300)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel+FEP PTFE PFA PVDF lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211

China FEP PTFE PFA lined ball valve design peroformance
1. Full FEP PTFE or PFA lined ball, stem and body offer unsurpassed resistance to corrosion, permeation and microbial contamination for maximum purity and reliability.
2. Rugged, high strength anti-blowout stem limits hysteresis for dependable operation.
3. Adjustable PTFE chevron packing eliminates leak paths and reduces fugitive emissions.
4. Durable, corrosion resistant PTFE seat designed for zero leakage, low torque isolation.
5. Metal-to-metal body joints protect the locked-in liner from damage caused by external forces.
6. Anti-static grounding device prevents static buildup.
7. ISO 5211 top mounting plate for easy actuation.

China FEP PTFE PFA lined ball valve application
Ultra Pure Water
Semiconductors
Chemical/Petro-Chemical
Chlor-Alkali
Phosphatic Fertilizer
Clean Liquids and Gases
Corrosive Liquids and Gases
Hazardous Liquids and Gases
Viscous Liquids
Vacuum Service
Strong Oxidizing Agents
Organic Solvents
