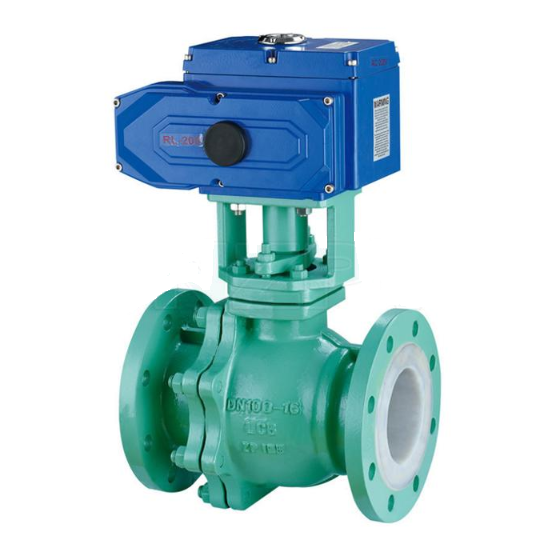

PTFE PFA Electric lined ball valve

PTFE PFA Electric lined ball valve introduction
PTFE PFA Electric lined ball valve is composed of electric actuator and O-type PTFA PFA fluorine ball valve.The inner cavity and ball core of the PTFE PFA Electric lined ball valve body are lined with anti-corrosion and anti-aging polyperfluorinated ethylebingene by high-pressure injection molding process, so it has anti-corrosion and sealing properties.PTFE PFA Electric lined ball valve is mainly used to adjust or cut off the strong corrosive medium such as acid and alkali in the production process.Electric actuator built-in servo system, without additional servo amplifier, input 4-20mA signal and 220VAC/380V power supply can be controlled operation.PTFE PFA Electric lined ball valve has the advantages of simple connection, compact structure, small size, light weight, small resistance, stable action, etc.

PTFE PFA Electric lined ball valve is widely used in various different types of industrial pipelines in the transport of liquid and gas (including steam), especially the use of severe corrosive medium, such as: hydrofluoric acid, chlorine gas, strong alkali, aqua aqua and other corrosive medium.

PTFE PFA Electric lined ball valve performance
-Ball Valve size: 1/2" ~ 16" (DN15-DN400)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel+FEP PTFE PFA lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Electric Actuator Supply:AC220V,AC380V
