Ball valve manufacturer

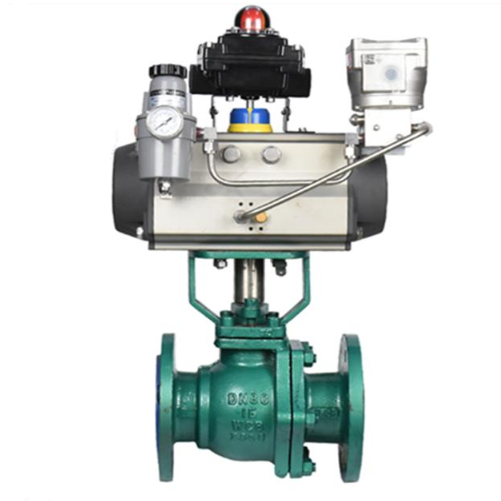

Pneumatic PTFE PFA fluorine lined ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN25 CL150
  • Structure:Full FEP PTFE PFA lined
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:WCB,CF8,CF8M+Fluorine lined
  • Connection:Flange
  • Feature:Lind material can not bear too high pressure
Pneumatic PTFE PFA fluorine lined ball valve introduction
Pneumatic PTFE PFA fluorine lined ball valve is made of pneumatic actuator and the PTFE PFA fluorine ball valve, the pneumatic ball valve using fluorine plastic FEP PTFE PFA as lining, and matches them with the new structure with rod ball, coupled with its unique elastic lip seal structure, Pneumatic PTFE PFA fluorine lined ball valve can in the large pressure difference and large temperature difference change range with high sealing performance and low operating torque.Pneumatic PTFE PFA fluorine lined ball valve can be used as a switch or regulation, corrosion resistant pneumatic ball valve is suitable for all kinds of industrial pipelines in liquid and gas transport (including steam), in a variety of acid, alkali, salt and other strong corrosive medium can work well.Pneumatic PTFE PFA fluorine lined ball valve provide maximum flow and can be used to sweep lines to clean or isolate delivery lines.Accessories are positioner, solenoid valve, air pressure reducing valve.

Pneumatic PTFE PFA fluorine lined ball valve is widely used in various different types of industrial pipelines in the transport of liquid and gas (including steam), especially the use of severe corrosive medium, such as: hydrofluoric acid, chlorine gas, strong alkali, aqua aqua and other corrosive medium.

Pneumatic PTFE PFA fluorine lined ball valve Product Range:
-Ball Valve size: 1/2" ~ 16" (DN15-DN400)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel+FEP PTFE PFA lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic PTFE PFA fluorine lined ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic PTFE PFA fluorine lined ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
