Ball valve manufacturer

Pneumatic spring return ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:Single acting spring return

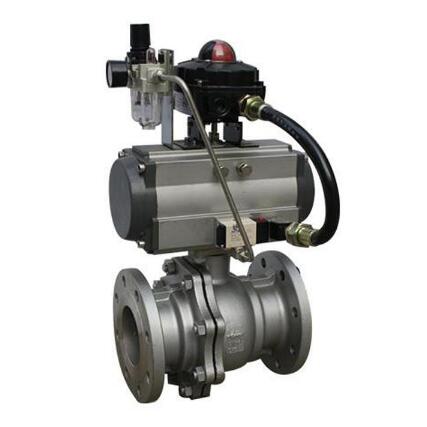

Pneumatic spring return ball valve introduction:
Pneumatic spring return ball valve is composed of high precision pneumatic actuator and precision ball valve.Pneumatic ball valve is mainly divided into soft seal pneumatic ball valve and hard seal pneumatic ball valve.Pneumatic spring return ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good tightness, easy maintenance, convenient installation, strong adaptability.Pneumatic spring return ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic spring return ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic spring return ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic spring return ball valve is the ball valve with single acting spring return pneumatic actuators.Pneumatic actuators of relatively fast speed, the fastest switching speed of 0.05 seconds/time, so usually also called pneumatic quick cut off the ball valve.Pneumatic spring return ball valve is usually with various accessories, such as solenoid valve, air source treatment sanlian pieces, limit switch, locator, control box, etc., in order to realize the local control and remote centralized control, in the control room can control the switch of the ball valve, do not need to run to the field or high altitude and dangerous manual control, to a great extent, save the human resources and time and safety.

Pneumatic spring return ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic spring return ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic spring return ball valve adopts a new series of pneumatic actuators, with double action type and single action type (spring return), pinion and rack drive, safe and reliable;Large diameter valve using series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double action and single action.
1. Geared double piston with large output torque and small volume.
2. The cylinder is made of aluminum and gold, light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4, rack type connection can adjust the opening Angle, rated flow.<
5. The actuator can choose feedback indication of live signal and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. Pitch screws adjusted at both ends can provide ±4° adjustable range for standard products at 0° and 90°.Ensures synchronization accuracy with ball valve.

Pneumatic spring return ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
