Ball valve manufacturer

Pneumatic actuated ball valve price

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:Floating,full bore,2PC
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:Pneumatic actuated ball valve price for sale
Shanghai Huixuan is pneumatic actuated ball valve manufacturer and factory in China,we supply pneumatic actuated ball valve price for you,Meanwhile we can offer carbon steel pneumatic actuated ball valve price,stainless steel pneumatic actuated ball valve price,PTFE PFA lined pneumatic actuated ball valve price,ceramic lined pneumatic actuated ball valve price,trunnion pneumatic actuated ball valve price,segmented pneumatic actuated ball valve price,high pressure pneumatic actuated ball valve price,cryogenic pneumatic actuated ball valve price,3 way pneumatic actuated ball valve price.

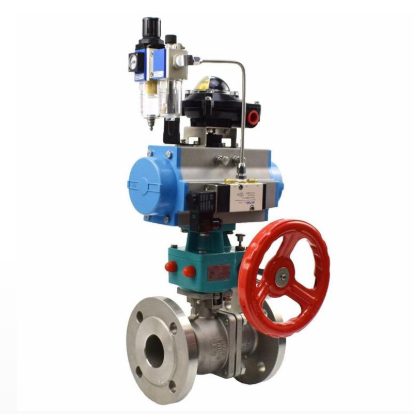

Pneumatic actuated ball valve is composed of double acting or single acting pneumatic actuator and ball valve.Pneumatic actuated ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic actuatedball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic actuated ball valve ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic actuated ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic actuated ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
