Ball valve manufacturer

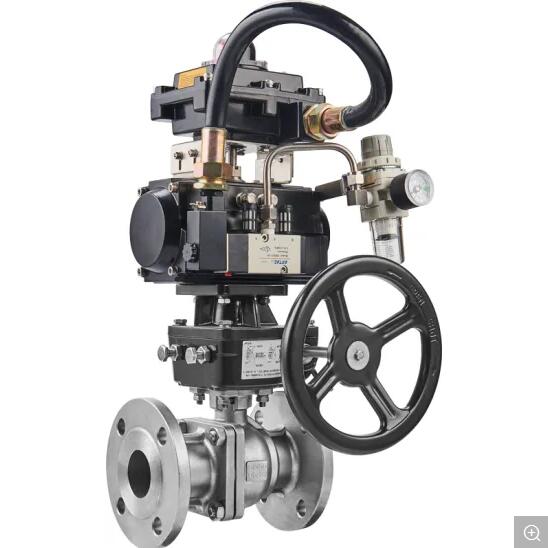

Pneumatic operated on off ball Valve with handwheel

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~150℃,
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flange
  • Feature:Side handwheel for emergency on off
Pneumatic operated on off ball Valve with handwheel introduction:
Pneumatic operated on off ball Valve with handwheel the ball valve with pneumatic actuator and handweel, Pneumatic operated on off ball Valve with handwheel is usually with various accessories, such as positioner,handwheel, solenoid valve,limit switch,air regulator,control box, etc.pneumatic actuators of relatively fast speed, the fastest switching speed of 0.05 seconds/time, so usually also called pneumatic quick cut off the ball valve, in order to realize the local control and remote centralized control, in the control room can control the switch of the valve, do not need to run to the field or high altitude and dangerous manual control, to a great extent, save the human resources and time and safety.

Pneumatic operated on off ball Valve with handwheel is usually with various accessories, such as positioner,handwheel, solenoid valve,limit switch,air regulator., control box, etc. Pneumatic operated on off ball Valve with handwheel is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other applications where strict requirements are requiredAir Operated pneumatic ball valve Double Acting can also be applied to water, steam, oil, liquefied gas, natural gas, gas and other media. In addition, fire-resistant and special hardening treatments can be selected according to customers’ requirements.

Pneumatic operated on off ball Valve with handwheel working principle:
Pneumatic operated on off ball Valve with handwheel can be closed tightly with only a 90-degree rotation of the air source using pneumatic actuators.Completely equal body cavity for the medium to provide little resistance, through the flow.Pneumatic operated on off ball Valve with handwheel is generally considered that the ball valve is most suitable for direct use.The main characteristic of the Pneumatic operated on off ball Valve with handwheel is its compact structure, easy to operate and maintain, pneumatic ball valve is suitable for water, solvent, acid and natural gas and other general working medium, but also suitable for working conditions of poor medium, such as oxygen, hydrogen peroxide, methane and ethylene.The ball valve body may be integral or modular.

Pneumatic operated on off ball Valve with handwheel
Pneumatic operated on off ball Valve with handwheel Design features:
1. 1S0 5211 platform connection;
2. Stem blowout proof design;
3. Adjustable upper seal function;
4. Fire safe structure design;
5. Ball valve precision casting

Air Operated Pneumatic Ball Valve Double Acting standard:
Chinese GB design standards for Air Actuated Pneumatic Stainless Ball Valve:
1. Design and manufacturing: GB/T-12237;
2. Flange connection: HG/T-20592, G B/ T-911 3;
3. Structure length: GB/T-12221;4. Wall thickness standard: GB/T-26640;
5. Inspection test: GB/T-26480

American Standard design standards for Air Actuated Pneumatic Stainless Ball Valve:
1. Design and manufacturing: API6D / 608;
2. Flange connection with ASME B16.5;
3. Structure length: ASME B16.10;
4. Wall thickness standard ASME B16.34;
5. Inspection test: API598

Pneumatic operated on off ball Valve with handwheel pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time


Pneumatic operated on off ball Valve with handwheel accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
Pneumatic ball valve accessories

Our product range:

Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
