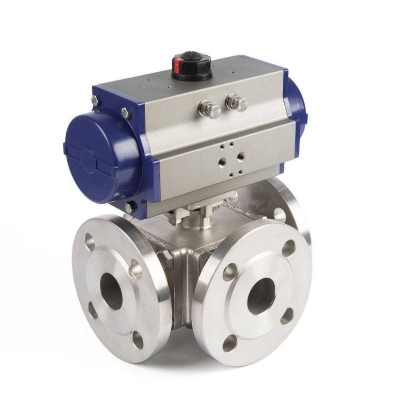

Pneumatic 3 way ball valve L port or T port

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:3 way:T Port or L port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:Need confirm the flow direction
Pneumatic 3 way ball valve L port or T port introduction
Pneumatic 3 way ball valve L port or T port composed of flange or threaded 3 way ball valve and double acting or single acting pneumatic actuator, Pneumatic 3 way ball valve L port or T port is used for medium diversion, confluent and flow direction switching, any pipe can be used as an inlet or outlet.Pneumatic 3 way ball valve L port or T port divided into pneumatic  3 way L port ball valve and pneumatic 3 way T port  ball valve, 3 way ball valve with pneumatic actuator can meet different production process requirements.Pneumatic three way L type ball valve is to cut off two of the three pipelines, and pneumatic three way T type ball valve realizes the confluent and diverging of the three connected pipelines.Pneumatic three way regulating ball valve is matched with electric valve positioner, and the operation can be controlled by inputting 4 ~ 20mADC signal and 0.4 ~ 0.7mpa air source, so as to realize the adjustment of pressure, flow, temperature, liquid level and other parameters.TPneumatic 3 way ball valve L port or T port stroke limit switch, solenoid valve, pressure reducing valve and air source of 0.4-0.7mpa can realize switch operation, and send two pairs of passive contact signals indicating the valve switch.Thread 3 way ball valve with pneumatic actuator is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, aviation, aerospace, papermaking and other industrial fields.

Pneumatic 3 way ball valve L port or T port Technical parameters

Nominal size:DN15-DN300mm

Body material: WCB、304、316、316L or others

Connection type: Flange

Pressure class: PN10-PN64 CL150-CL600

Structure type: Floating ball core 3 way T type, 3 way L type

Seat sealing: PTFE:-30℃~180℃

PPL :-30℃~250℃

Hard seal:-30℃~450℃

Hard alloy: Surface spray welding, tungsten nitride

Core material: 304、316、316L、WCB

Hard seal core surface spray welding, tungsten nitride treatment.

Stem material: 304

Applicable medium: Water, liquids, gas, oil, powder, steam, acid and alkali corrosive medium


Pneumatic 3 way ball valve L port or T port Performance

Fire protection structure design

ISO5211 standard can direct mounting actuators

Between the core and the valve body antistatic device

Stem explosion proof design

Double stem packing conforms to the German TUV TA - being LUFL stem leakage test

Double butterfly shrapnel automatic compression packing design

Allowable pressure differential: Less than nominal pressure 1.6MPa

Leakage: Zero leakage

Hysteresis:±2.5%


Pneumatic 3 way ball valve L port or T port flow diagram

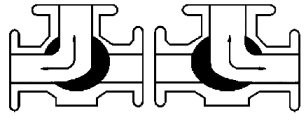

3 way L port

WCB Body pneumatic three way ball valve l type

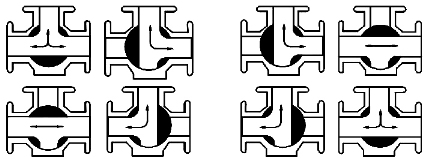

3 way T port (Four kinds of flow directions)

WCB Body pneumatic three way ball valve t type

Thread 3 way ball valve with pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Double acting: Air to open, air to close, air supply failure to keep the current position

Single acting air to open type: Air to open, interrupt air to close, air failure to close

Single acting air to close: Air to close, interrupt air to open, air failure to open

Optional accessory: Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve

Electrical part can be chose explosion-proof type
