Ball valve manufacturer

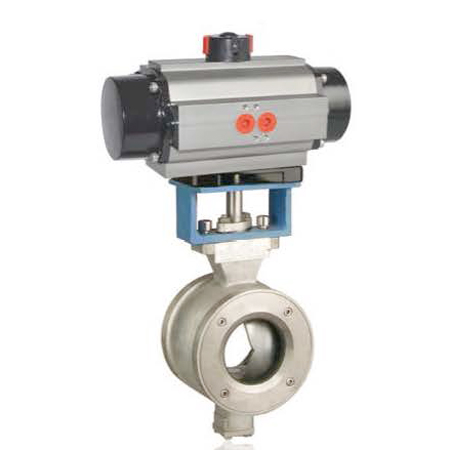

Wafer type segment pneumatic ball valve

  • Port size:DN25~300, NPS 1〞~ 12〞
  • Pressure:PN16 ~ 40 CLASS 150/300LB
  • Structure:Wafer type,segmented ball
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃,
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Wafer type,flange type is optional
  • Feature:Good control performance
Wafer type segment pneumatic ball valve introduction
Wafer type segment pneumatic ball valve is a valve with a v-shaped opening designed for the ball core channel, with accurate flow characteristics and control functions.Through 0-90 degree rotation action,Wafer type segment pneumatic ball valve to achieve flow regulation.No clearance friction between the seat and the sphere, with excellent shear force and self-cleaning ability, Wafer type segment pneumatic ball valve is especially suitable for the fluid medium with fiber or with small particles.

Wafer type segment pneumatic ball valve Feature
1. No clearance friction between the seat and the sphere, with excellent shear force and self-cleaning ability
2. With accurate flow characteristics and control functions.
3. High platform design in accordance with ISO5211 standard, Wafer type segment pneumatic ball valve can be  ISO5211 standard actuator, direct connection.Good compatibility
4. Compact structure, high dimensional accuracy.The appearance is exquisite.

Wafer type segment pneumatic ball valve technical specification
Pneumatic actuators: double action, single action normally closed, single action normally open
Accessories:optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter: DN25-300mm
Nominal pressure: PN10, PN16, PN25, PN40,CL150,CL300
Suitable temperature: PTFE:-30~+180℃, hard seal
Connection mode: sandwich type, flange type
Valve body design: Type A
Body material: WCB, 304, 316, 316L,or others
Valve ball material: WCB, 304, 316, 316L,or other
Seat lining: PTFE, alloy steel (surfacing carbide, chromium plating, tungsten nitride)
Medium:Suitable for medium water, liquid, gas, oil, acid and alkali corrosive medium


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
