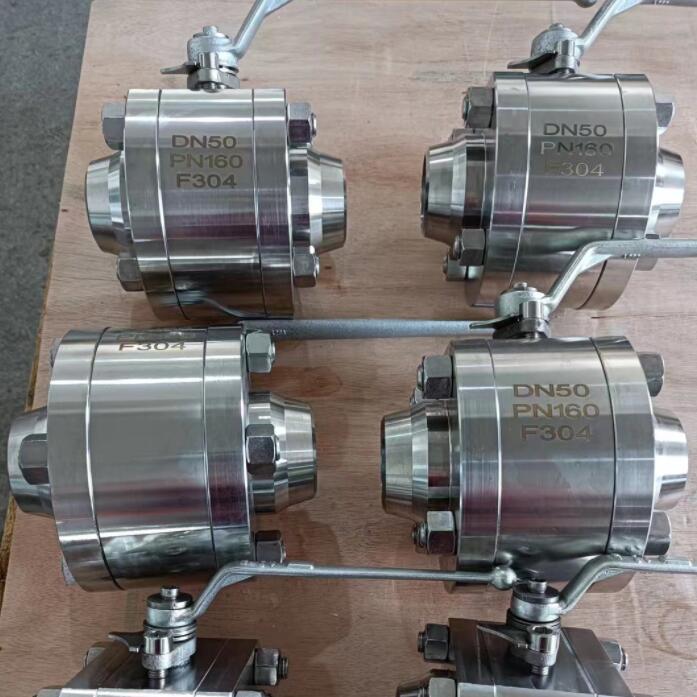

PN160 High Pressure Ball Valve F304 DN50

Port size：DN50 or others
Pressure：PN160 or others
Structure：3PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：F304 F316 F316L or others
Connection：Flange,Thread,SW,BW is optional
Feature：Customized order is acceptable

Product Description

PN160 High pressure ball valve F304 DN50 is 2 piece or 3 piece structure, full bore with BW end,threaded end or socket welded end is optional for high pressure service. PN160 High pressure ball valve F304 DN50 is a kind of high pressure service valve with A105 F304 F316 or other forged steel material. PN160 High pressure ball valve F304 DN50 in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium. PN160 High pressure ball valve F304 DN50 most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

PN160 High pressure ball valve F304 DN50 specification:
1.Full port, 1/2-2"
2. Nonimal pressure.:All range high pressure rating
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

PN160 High pressure ball valve F304 DN50 standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
