Ball valve manufacturer

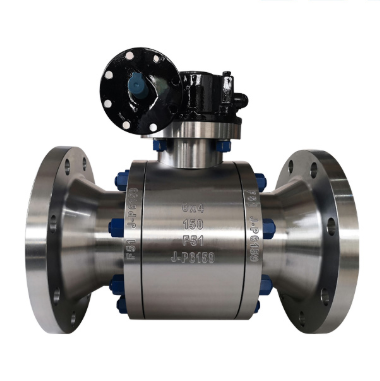

Reduced bore forged steel ball valve

  • Port size:1/2"-12''
  • Pressure:150LB-2500LB
  • Structure:3PC,Floating ball
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Forged steel
  • Connection:RF, BW, RTJ
  • Feature:3 PC,Reduced bore structure
Reduced bore forged steel ball valve introduction
Reduced bore forged steel ball valve is 3PC,floating ball structure,the driving mode of Reduced bore forged steel ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is 1/2''-12'', the material can be forged steel, forged stainless steel.

Reduced bore forged steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

Reduced bore forged steel ball valve Specification:
Product Name Reduced bore forged steel ball valve
1. Material F304,F316 etc.
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure 150LB-2500LB
5. Connection Ends RF,RTJ,BW,SW
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Reduced bore forged steel ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
