Ball valve manufacturer

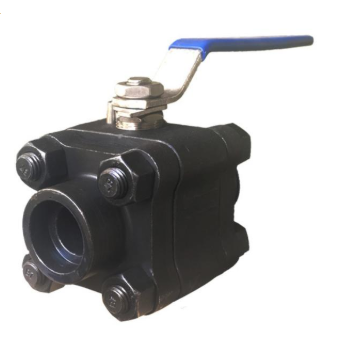

800LB A105 Socket weld forged steel ball valve

  • Port size:1/4"~2" (DN10~DN50)
  • Pressure:CL800 or CL900-CL2500
  • Structure:3PC,Full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 or F304 F316 F316L etc.
  • Connection:Socket weld,or others
  • Feature:800LB to 2500LB Pressure class is optional
800LB A105 Socket weld forged steel ball valve introduction
800LB A105 Socket weld forged steel ball valve is 3PC,full bore, floating ball structure,800LB A105 Socket weld forged steel ball valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.Due to the unique characteristics of the ball valve used in the long pipeline, 800LB A105 Socket weld forged steel ball valve ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, and so on, is fully considered in the design.The driving mode of 800LB A105 Socket weld forged steel ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is PN1.0-32.0mpa, the nominal diameter is DN10-200mm, the material can be forged steel, forged stainless steel.Because of the wide range of use of the ball valve, the same ball valve in different situations and working conditions have different collocation.

800LB A105 Socket weld forged steel ball valve work by rotating the valve to keep the valve open or blocked.Ball valve switch light, small volume, 800LB A105 Socket weld forged steel ball valve can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface often in the closed state, not easy to be eroded by the medium.800LB A105 Socket weld forged steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

800LB A105 Socket weld forged steel ball valve Specification:
Product Name  800LB A105 Socket weld forged steel ball valve
1. Material A105 or F304,F316 etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port
4. Working Pressure 800LB, or 900LB,1500LB,2500LB
5. Connection Ends Socket weld
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

800LB A105 Socket weld forged steel ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
