Ball valve manufacturer

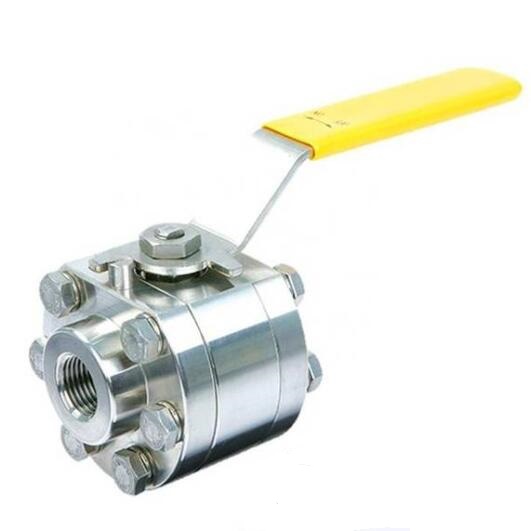

China forged high pressure ball valve

Port size：DN50-DN300;2''-12''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：A105 or F304,F316,F316L,F51,F53 etc.
Connection：Flanged,welded,threaded.
Feature：Customized for client's requirement

Product Description

China forged high pressure ball valve manufacturer,factory and supplier for 2 PC or 3 PC Full bore forged steel ball valve with A105,F304,F316,F316L,F51,F53,etc.The structure of forged high pressure ball valve is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is 1/2''-12''.China forged high pressure ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

China forged high pressure ball valve Specification:

Product Name	China forged high pressure ball valve
1. Material	A105,F304,F316,F316L,F51,F53,etc
2. Size	1/2-12 inch ( DN15-DN300)
3. Port	Full Port
4. Working Pressure	150LB-2500LB
5. Connection Ends	Flanged,welded,threaded
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

China forged high pressure ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
