Ball valve manufacturer

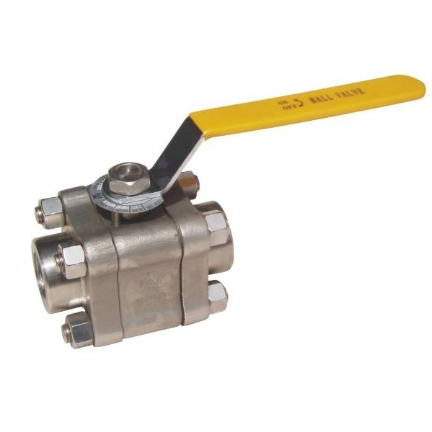

F304 F316 F316L Forged stainless steel ball valve

  • Port size:1/4"~2" (DN10~DN50)
  • Pressure:CL150-CL2500
  • Structure:Floating,full bore,3PC
  • Medium:Water,steam,oil,etc.
  • Temperature :-40~450℃
  • Body material:F304 F316 F316L or others
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:Special material is customized
F304 F316 F316L Forged stainless steel ball valve introduction
F304 F316 F316L Forged stainless steel ball valve is 3PC,full bore, floating ball structure with flange, thread, SW,BW end,F304 F316 F316L Forged stainless steel ball valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.F304 F316 F316L Forged stainless steel ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of F304 F316 F316L Forged stainless steel ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel.Because of the wide range of use of the F304 F316 F316L Forged stainless steel ball valve, the same ball valve in different situations and working conditions have different collocation.

F304 F316 F316L Forged stainless steel ball valve work by rotating the valve to keep the valve open or blocked.Ball valve switch light, small volume, F304 F316 F316L Forged stainless steel ball valve can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface often in the closed state, not easy to be eroded by the medium.F304 F316 F316L Forged stainless steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

F304 F316 F316L Forged stainless steel ball valve Specification:
Product Name  F304 F316 F316L Forged stainless steel ball valve
1. Material F304,F316,F316L,etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port
4. Working Pressure 800LB, or 900LB,1500LB,2500LB
5. Connection Ends Socket weld
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

F304 F316 F316L Forged stainless steel ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
