Ball valve manufacturer

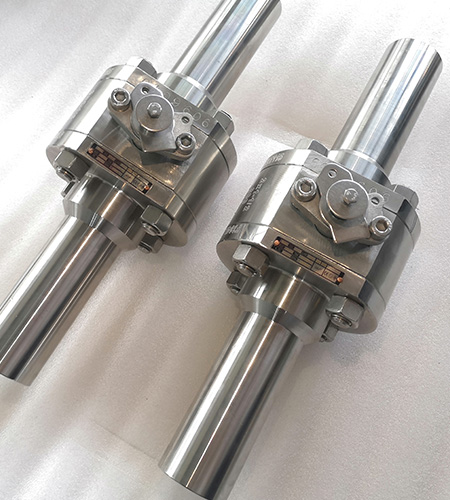

Forged steel extended body ball valve

  • Port size:1/2"~2" (DN15~DN50)
  • Pressure:CL150-CL2500
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Butt weld or others
  • Feature:The extended nipple length is customized
Forged steel extended body ball valve introduction
China forged steel ball valve manufacturer,factory and supplier for Forged steel extended body ball valve,which is 3PC,full bore,extended body (butt weld end with nipple), floating ball structure,Forged steel extended body ball valve sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel.Forged steel extended body ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

Forged steel extended body ball valve Specification:
Product Name Forged steel extended body ball valve
1. Material A105 or F304,F316 etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port or reduced port
4. Working Pressure 800LB, or 900LB,1500LB,2500LB
5. Connection Ends Socket weld or butt weld
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Forged steel extended body ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
