Ball valve manufacturer

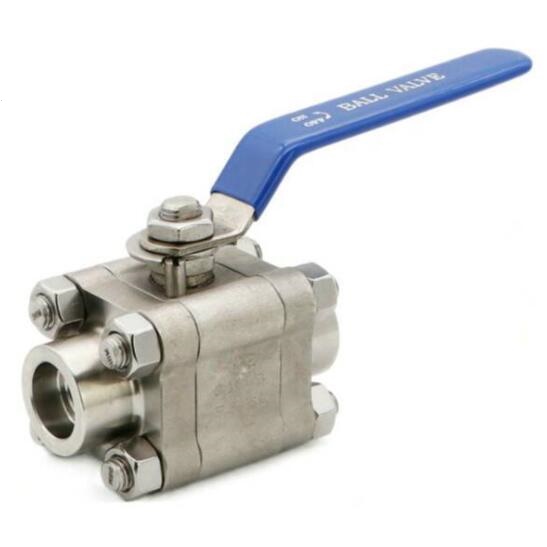

Class 2500 Forged Ball Valve A105 F304 F316

Port size：1/2″ to 4″,DN15-DN100
Pressure：2500LB or others
Structure：3 PCS, Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-20 to 180 ℃ for soft seat, -40 to 450℃ for metal seat.
Body material：A105,LF2,F304,F316 or other forged steel
Connection：SW, BW, NPT or others
Feature：Customized order is acceptable.

Product Description

Class 2500 Forged Ball Valve Manufacturer, Factory and Supplier. Class 2500 Forged Ball Valve A105 F304 F316 can be NPT SW BW connection end, 3PC, full bore, floating ball structure, Class 2500 Forged Ball Valve A105 F304 F316 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. Class 2500 Forged Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of Class 2500 Forged Ball Valve A105 F304 F316 can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

Class 2500 Forged Ball Valve A105 F304 F316 Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Class 2500 Forged Ball Valve A105 F304 F316 Specification:

Product Name	Class 2500 Forged Ball Valve A105 F304 F316
1. Material	A105 or F304,F316 etc.
2. Size	1/4~4 inch ( DN10~DN100)
3. Port	Full Port
4. Working Pressure	2500LB or others
5. Connection Ends	NPT Threaded,Socket Weld, Butt Weld or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
