Ball valve manufacturer

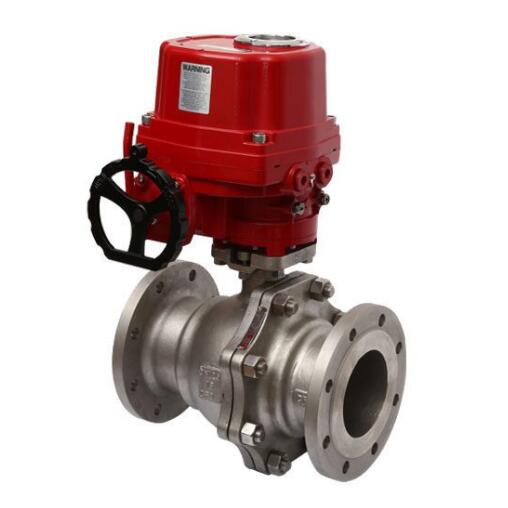

Normally closed electric motorized ball valve

  • Port size:DN15-DN600;1/2''-24''
  • Pressure:PN16 ~ 420,150LB ~ 2500LB
  • Structure:2PCS or 3 PCS
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Carbon Steel, Stainless Steel,forged steel
  • Connection:Flanged,welded,threaded.
  • Feature:Auto return to the original position when power off
Normally closed electric motorized ball valve,Auto return electric motorized ball valve automatically returns the valve to its original position when de-energised. The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 60 seconds).In the process of field use, sudden emergency fault, in the case of external power outage, power reset series electric actuators of the Normally closed electric motorized ball valve can be immediately valve command, a program to continue to work to the fully open or close the valve state power reduction effect, power is fully open or close the factory can set according to the requirement, the maximum meet the protection requirements of the various special pipeline,  Power plants, chemical plants, environmental protection equipment and other industries.

Normally closed electric motorized ball valve Power off reset function

In normal use, in case of emergency, the external power supply must be cut off!  Dangerous goods storage tanks, oil pipelines and other occasions in case of emergency valve closed!

Explosion-proof power-off reset actuator automatically operates when the external power supply is disconnected close the valve (power-off on, power-off off) factory setting optional.


Normally closed electric motorized ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V
Nominal diameter DN15mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.


Normally closed electric motorized ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
