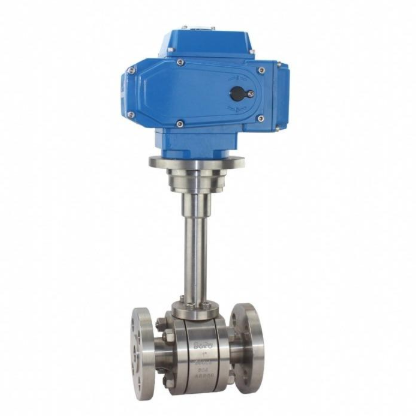

Electric motorized cryogenic ball valve

Electric motorized cryogenic ball valve introduction:
Electric motorized cryogenic ball valve suitable for the management system of cryogenic liquid storage and transportation equipment. Electric motorized cryogenic ball valve has the characteristics of flexible switch and reliable seal, and Low temperature cryogenic ball valve can also be used for other management systems of cryogenic and cryogenic medium.Electric motorized cryogenic ball valve is mainly used for the output of liquid low-temperature media such as ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products and other low-temperature media.Electric motorized cryogenic ball valve is suitable for the pipeline, used to cut off or connect the medium in the pipeline, with different materials, can be applied to different temperatures and media, the minimum working temperature is -196℃.

Electric motorized cryogenic ball valve has good sealing performance, large flow capacity, convenient loading and unloading maintenance, small flow resistance, reliable sealing and even cutting off.Electric motorized cryogenic ball valve is small in size, light in weight, large in thrust, strong in function, servo amplifier is installed inside, easy to operate, high in reliability, ball valve and actuator adopts direct connection mode, built-in servo system, without the need for additional servo amplifier, input and output signals 4-20mA and 220VAC power supply can be controlled operation.

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature	-196 - +29ºC
Connection mode	flange or welding
electric ball valve Body material	Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8
electric ball valve ball material	Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8
Seat lining	Soft seated or metal seated
electric ball valve Suitable medium	ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products etc.


Electric motorized cryogenic ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Electric motorized cryogenic ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)
