Ball valve manufacturer

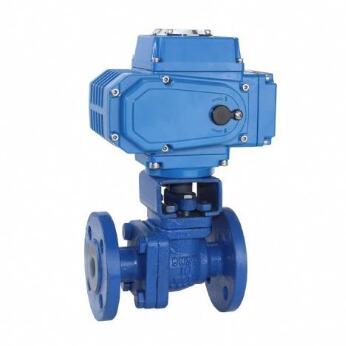

Motorized full PTFE PFA Lined ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN16 CL150
  • Structure:Full FEP PTFE PFA lined
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:WCB,CF8,CF8M+FEP PTFE PFA lined
  • Connection:Flange
  • Feature:Full lined structure for corrosive medium
Motorized full PTFE PFA Lined ball valve is composed of electric actuator and O-type PTFA PFA fluorine lined ball valve.Motorized full PTFE PFA Lined ball valve is mainly used to adjust or cut off the strong corrosive medium such as acid and alkali in the production process.Electric actuator built-in servo system, without additional servo amplifier, input 4-20mA signal and 220VAC/380V power supply can be controlled operation.Motorized full PTFE PFA Lined ball valve is widely used in various different types of industrial pipelines in the transport of liquid and gas (including steam), especially the use of severe corrosive medium, such as: hydrofluoric acid, chlorine gas, strong alkali, aqua aqua and other corrosive medium.

Motorized full PTFE PFA Lined ball valve performance
-Ball Valve size: 1/2" ~ 16" (DN15-DN400)
-Pressure: ANSI Class 150 (PN10-PN16)
-Temperature for ball valve: -29ºC~ 180ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel+FEP PTFE PFA lined
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Electric Actuator Supply:AC220V,AC380V

Motorized full PTFE PFA Lined ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V
Nominal diameter DN15mm ~ DN400mm
Nominal pressure PN1.0MPa~PN16MPa,CL150
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE,PFA,FEP
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.

Motorized full PTFE PFA Lined ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Motorized full PTFE PFA Lined ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)

We are the electric ball valve manufacturer,electric ball valve factory,electric ball valve supplier, China electric ball valve for electric floating ball valve,electric trunnnion mounted ball valve,eletric 3 way ball valve,electric 4 way ball valve,electric PTFE lined ball valve,electric PFA Lined ball valve,eletric,electric stainless steel ball valve,electric cast steel ball valve,electric forged steel ball valve,electric segmented ball valve,electric ceramic lined ball valve,electric cryogenic ball valve and other ball control valve.
