Ball valve manufacturer

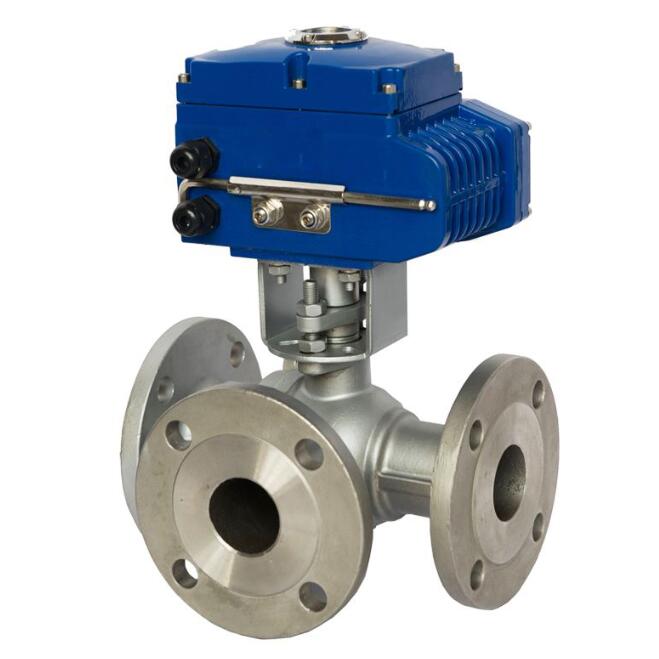

Stainless steel three way electric ball valve

  • Port size:1/2'' ~ 24''( 15mm ~ 600mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Structure:3 way:T port of L port
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃,
  • Body material:CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Need confirm the flow direction
Stainless steel three way electric ball valve introduction:
Stainless steel three way electric ball valve is mainly composed of T or L three way ball valve with CF8 CF8M CF3 CF8M or other stainless steel body and electric actuator with different function and control, Stainless steel three way electric ball valve is mainly used in the direction of the pipeline intermediary, confluence and shunt.The L-type electric three way ball valve is to switch or cut off the flow direction of two perpendicular channels of the medium, plays a distribution role, and the T-type electric three way ball valve not only to cut the flow direction of the medium, but also can make the three channels connected to each other or close any one of the channels, play the role of diversion, confluence.The Stainless steel three way electric ball valve can be installed on its actuator valve positioner and other related accessories, can control the ball valve ball core operation, and then play the automatic control of the pipeline medium.

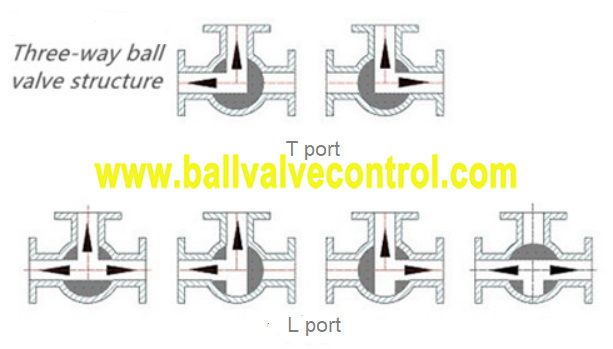

Stainless steel three way electric ball valve flow direction:
Stainless steel three way electric ball valve flow direction

L-shaped Stainless steel three way electric ball valve can only connect or cut off two perpendicular orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time, only playing the role of distribution.
T-type Stainless steel three way electric ball valve can make three orthogonal pipe connected to each other or cut off any third channel, to achieve the function of two in and one out or one in and two out, play the role of diversion, confluent.

Stainless steel three way electric ball valve Product Range:
-electric ball valve size: 1/2" ~ 24" (DN15-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for electric ball valve: -46ºC~ 450ºC
-Body Materials: CF8 CF8M CF3 CF3M or other material
-Trim: CF8 CF8M CF3 CF3M or other material
-Design: BS5351, ANSI B16.34, DIN, JIS
-Mounting Pad of electric ball valve: ISO5211 or Yoke connection

Stainless steel three way electric ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter DN15mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  Flange
electric ball valve Body material WCB WCC CF8 CF8M or other material
electric ball valve ball material CF8 CF8M or other material
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
