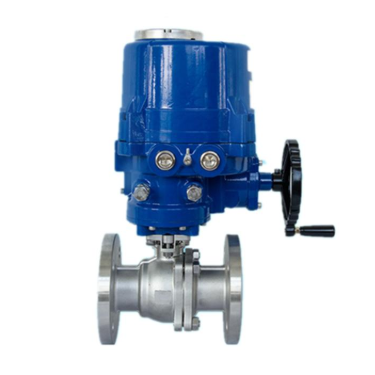

Motorized electric stainless steel ball valve

Motorized electric stainless steel ball valve introduction:
Motorized electric stainless steel ball valve is composed of stainless steel ball valve and different function electric actuator,Motorized electric stainless steel ball valve only need to rotate 90° can be fully closed and fully open.Motorized electric stainless steel ball valve body channel is the same diameter as the connecting pipe, and the medium can flow through almost without loss.Motorized electric stainless steel ball valve is suitable for two - position cutting and adjusting.Motorized electric stainless steel ball valve mainly divided into two categories: electric soft seal ball valve and electric hard seal ball valve, electric soft seal ball valve is mainly suitable for temperature below 220 degrees of medium.Electric hard seal ball valve is mainly suitable for above 200 degree medium.

Motorized electric stainless steel ball valve has good sealing performance, large flow capacity, convenient loading and unloading maintenance, small flow resistance, reliable sealing and even cutting off.Motorized electric stainless steel ball valve is small in size, light in weight, large in thrust, strong in function, servo amplifier is installed inside, easy to operate, high in reliability, ball valve and actuator adopts direct connection mode, built-in servo system, without the need for additional servo amplifier, input and output signals 4-20mA and 220VAC power supply can be controlled operation.Motorized electric stainless steel ball valve has the advantages of simple connection, compact structure, stable and reliable operation.Motorized electric stainless steel ball valve is an important type of electric valve, which is widely used in petrochemical industry and long distance pipeline.The shutoff is a partially perforated ball that rotates with the stem to open or close the valve.Motorized electric stainless steel ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature	PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode	flange
electric ball valve Body material	WCB,304, 316, 316L,etc.
electric ball valve ball material	A105,304, 316, 316L,etc.
Seat lining	PTEE, PPL, metal seal
electric ball valve Suitable medium	water, petroleum, acid, viscous fluid, slurry medium, etc.


Motorized electric stainless steel ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

 Motorized electric stainless steel ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)
