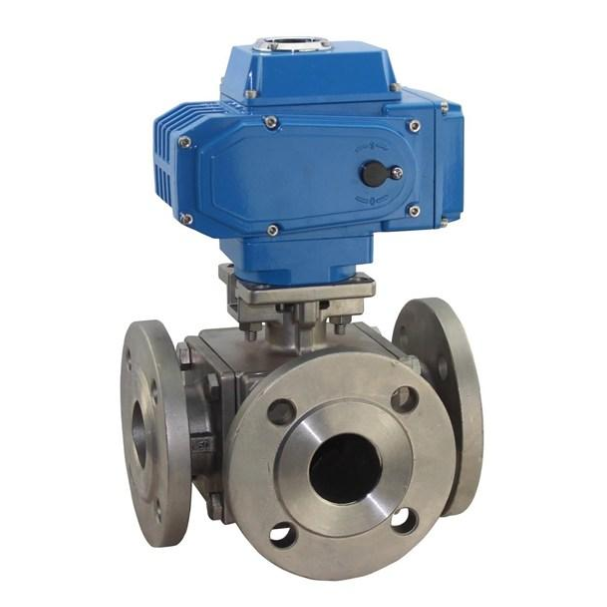

2 inch 3 Way Electric Ball Valve

  • Port size:2" (DN50)
  • Pressure:PN16-PN420 CL150-CL2500
  • Structure:3 way:T Port or L port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:ISO 5211 mounting pad is optional
2 inch 3 Way Electric Ball Valve is composed of DSR, 3810R, DZW, HQ, PSQ series electric actuator and T type or L tyoe ball valve. 2 inch 3 Way Electric Ball Valve changes the relative position of ball core and pipe through the power generated by electric actuator, so as to realize different combination control of three pipeline fluids.2 inch 3 Way Electric Ball Valve to 220V single-phase ac power source, accept the control system (or operator) to the 220V switch signal, and through the single-phase power switch drive reversible single-phase gear reducer motor, according to the combined requirements of the provisions, so that the T-type 3 way ball valve to achieve the line fluid reversing action.
2 inch 3 Way Electric Ball Valve can make three orthogonal pipelines connected to each other, that is, play the role of shunt (confluence), and also can make two of the pipelines connected and cut off the other pipeline, flexible control of confluence or diverging of pipeline intermediate.


2 inch 3 Way Electric Ball Valve Product Range:
-Ball valve size: 1/2" ~ 12" (DN15-DN300)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211


2 inch 3 Way Electric Ball Valve standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

2 inch 3 Way Electric Ball Valve material
No. Part name           Material
WCB                   CF8                 CF8M                 CF3M
1 Body/Bonnet WCB CF8(304) CF8M(316) CF3M(316L)
2 Ball WCB+ENP CF8(304) CF8M(316) CF3M(316L)
3 Seal ring PTFE、PPL、Graphite
4 Seat PTFE PTFE PTFE PTFE
5 Packing Graphite/PPL/PTFE+Oring
6 Shaft 2Cr13 304 316 316L
7 Bolt 35CrMoA 304 316 316L
8 Gasket PTFE、PPL、Graphite

2 inch 3 Way Electric Ball Valve actuator parameter
Electric actuator type: DSR, 3810R, DZW, HQ, PSQ electric actuator
Main technical parameters
Power supply voltage: 220V/50Hz, 380V/50Hz;
Input signal: 4-20mA or 1-5V·DC; Output signal: 4-20mA·DC
Protection level: equivalent to IP65(or IP67);
Explosion-proof marks: Exd Ⅱ BT4;
Hand operation function: handle.
Ambient temperature: -25 ~ +70℃;
Ambient humidity: ≤95%
