Ball valve manufacturer

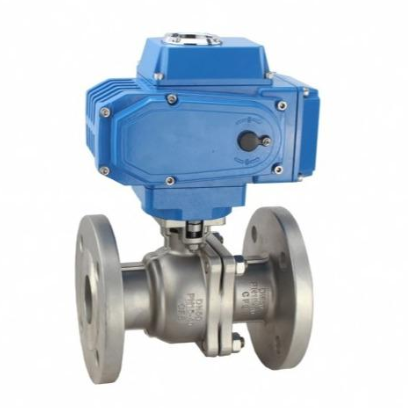

Electrically actuated electric ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:CL150-CL2500,PN10-PN420
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:ISO 5211 mounting pad
Electrically actuated electric ball valve introduction:
Electrically actuated electric ball valve only need to rotate 90° can be fully closed and fully open.Electrically actuated electric ball valve body channel is the same diameter as the connecting pipe, and the medium can flow through almost without loss.Electrically actuated electric ball valve is suitable for two - position cutting and adjusting.Electrically actuated electric ball valve mainly divided into two categories: electric soft seal ball valve and electric hard seal ball valve, electric soft seal ball valve is mainly suitable for temperature below 220 degrees of medium.Electric hard seal ball valve is mainly suitable for above 200 degree medium.The Electrically actuated electric ball valve has good sealing performance, large flow capacity, convenient loading and unloading maintenance, small flow resistance, reliable sealing and even cutting off.Electrically actuated electric ball valve is small in size, light in weight, large in thrust, strong in function, servo amplifier is installed inside, easy to operate, high in reliability, ball valve and actuator adopts direct connection mode, built-in servo system, without the need for additional servo amplifier, input and output signals 4-20mA and 220VAC power supply can be controlled operation.Electrically actuated electric ball valve has the advantages of simple connection, compact structure, stable and reliable operation.Electric flange ball valve is an important type of electric valve, which is widely used in petrochemical industry and long distance pipeline.The shutoff is a partially perforated ball that rotates with the stem to open or close the valve.The Electrically actuated electric ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

Electrically actuated electric ball valve Product Range:
-Ball valve size: 1/2" ~ 24" (DN15-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

Electrically actuated electric ball valve technology standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

Electrically actuated electric ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter DN15mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.

Electrically actuated electric ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Electrically actuated electric ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
