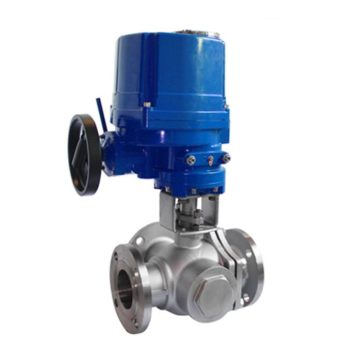

3 Way motorized L type ball valve introduction:
3 Way motorized L type
ball valve is composed of 3 way ball valve L port and different function electric actuator,3 way motorized ball valve is used for medium diversion, confluent and flow direction switching, any pipe can be used as an inlet or outlet.3 way ball valve with electric actuator can meet different production process requirements.3 Way motorized L type ball valve is to cut off two of the three pipelines, and 3 Way motorized T type ball valve realizes the confluent and diverging of the three connected pipelines.3 Way motorized L type ball valve has good sealing performance, large flow capacity, convenient loading and unloading maintenance, small flow resistance, reliable sealing and even cutting off. ball valve and actuator adopts direct connection mode, built-in servo system, without the need for additional servo amplifier, input and output signals 4-20mA and 220VAC/380VAC power supply can be controlled operation.
3 Way motorized L type ball valve has the advantages of simple connection, compact structure, stable and reliable operation.3 Way motorized L type ball valve is an important type of electric valve, which is widely used in petrochemical industry and long distance pipeline.The shutoff is a partially perforated ball that rotates with the stem to open or close the valve.3 Way motorized L type ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.
3 Way motorized L type ball valve Product Range:
-Ball valve size: 1/2" ~ 12" (DN15-DN300)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for
electric ball valve: -46ºC~ 450ºC
Body Materials: CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of
electric ball valve: ISO5211
3 Way motorized L type ball valve standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.
3 Way motorized L type ball valve technical parameter:
| Optional functions of electric actuator |
switch type, integral type, adjusting type, intelligent type |
| Optional models of electric actuator |
QM, QC series |
| Voltage |
AC220V, AC110V, AC380V |
| Nominal diameter |
DN15mm ~ DN600mm |
| Nominal pressure |
PN1.0MPa~PN10MPa,CL150-CL600 |
| Applicable temperature |
PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃ |
| Connection mode |
flange |
| electric ball valve Body material |
WCB,304, 316, 316L,etc. |
| electric ball valve ball material |
A105,304, 316, 316L,etc. |
| Seat lining |
PTEE, PPL, metal seal |
| electric ball valve Suitable medium |
water, petroleum, acid, viscous fluid, slurry medium, etc |
3 way Motorized ball valve L port or T port flow diagram
3 way L port
3 way T port (Four kinds of flow directions)
3 Way motorized L type ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
