Ball valve manufacturer

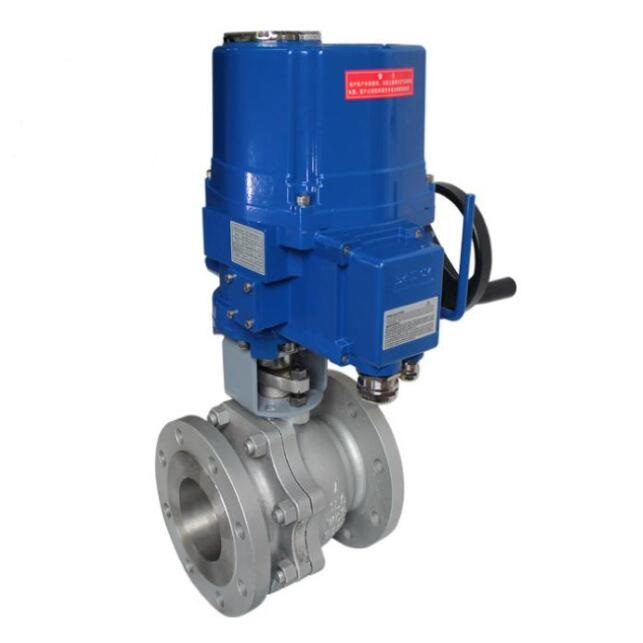

2 Inch 50mm DN50 electric ball valve

  • Port size:2" (DN50)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:on off or regulating actuator is optional
China 2 Inch 50mm DN50 electric ball valve manufacturer,factory and supplier with best price,2 Inch 50mm DN50 electric ball valve is full bore,2 PC,floating ball design with on off or adjusting function actuator,2 Inch 50mm DN50 electric ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

2 Inch 50mm DN50 electric ball valve Product Range:
-Ball valve size: 2" (DN50)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

2 Inch 50mm DN50 electric ball valve standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

2 Inch 50mm DN50 electric ball valve technical parameter:
Optional functions of electric actuator switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator QM, QC series
Voltage AC220V, AC110V, AC380V
Nominal diameter DN15mm ~ DN600mm
Nominal pressure PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode  flange
electric ball valve Body material WCB,304, 316, 316L,etc.
electric ball valve ball material A105,304, 316, 316L,etc.
Seat lining PTEE, PPL, metal seal
electric ball valve Suitable medium water, petroleum, acid, viscous fluid, slurry medium, etc.

2 Inch 50mm DN50 electric ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

2 Inch 50mm DN50 electric ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)

We are the electric ball valve manufacturer,electric ball valve factory,electric ball valve supplier, China electric ball valve for electric floating ball valve,electric trunnnion mounted ball valve,eletric 3 way ball valve,electric 4 way ball valve,electric PTFE lined ball valve,electric PFA Lined ball valve,eletric,electric stainless steel ball valve,electric cast steel ball valve,electric forged steel ball valve,electric segmented ball valve,electric ceramic lined ball valve,electric cryogenic ball valve and other ball control valve.
