Ball valve manufacturer

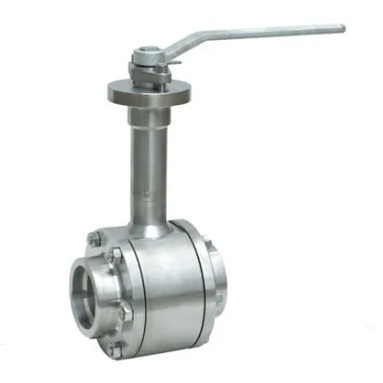

Forged steel F304 F316 cryogenic ball valve

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:Class 150 ~ Class 2500
  • Structure:Floating ball,2PC/3PC,FB/RB
  • Medium:LNG, liquid hydrogen, nitrogen,oxygen
  • Temperature :-196~29℃
  • Body material:F304/F316/F304L/F304L,etc.
  • Connection:Flange,welding
  • Feature:For LNG or other system
Forged steel F304 F316 cryogenic ball valve introduction
Forged steel F304 F316 cryogenic ball valve refer to valves that can be used under low-temperature conditions. TForged steel F304 F316 cryogenic ball valve operating temperature is below -40℃ .Forged steel F304 F316 cryogenic ball valve mainly used in ethylene, liquefied natural gas and other chemical installations.
The output of liquid low-temperature media such as ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products, not only flammable and explosive, but also in the heating to gasification, gasification, the volume expansion of hundreds of times.Forged steel F304 F316 cryogenic ball valve is one of the important equipment indispensable in petrochemical, air separation, natural gas and other industries. Valve body and bonnet :LCB(-46℃), LC3(-101℃), CF8(304)(-196℃).

Forged steel F304 F316 cryogenic ball valve  after special low temperature treatment, rough machining parts in the cooling medium for several hours (2-8 hours), to release the stress, ensure the low temperature performance of the material, ensure the precision machining size, in order to prevent the valve in low temperature working condition, caused by temperature deformation caused by leakage.

Forged steel F304 F316 cryogenic ball valve is used for low temperature working condition,especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship.

Forged steel F304 F316 cryogenic ball valve main parameter
Nominal diameter: DN50- DN600
Nominal pressure: 150LB- 2500LB
Working temperature:-196 - +29ºC
Driving means: handle, electric actuator
Material: Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8

Forged steel F304 F316 cryogenic ball valve technology standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

Forged steel F304 F316 cryogenic ball valve performance feature
1. An extended bonnet to the valve can make the packing gland in the valve and the actuator further away from the cold process so the valve can open and close properly, protect it from freeze-damage caused by low temperature fluid.
2. Low operating torque for smoother operations.
3. Excellent seat and seal design minimizes leakage.
4. Fire-safe design.
5. Rigid body construction minimizes thermal shrinkage.
6. By adopting different materials, the cryogenic ball valve is applicable to different working temperature and medium. The minimum temperature for the ball valve is -196ºC.

Forged steel F304 F316 cryogenic ball valve design feature
● Meets ASME B16.5, ASME B16.34, API 608, API 598.
● Face-to-face dimensions meet ASME B16.10 long pattern.
● Gear actuator standard on NPS 8–24 (DN 200–600) SB-150/300 and NPS 6 –12 (DN 150–300) SB-600 valves.
● Memory seal seats compensate automatically for wear and fluctuations of pressure and temperature.
● Long cycle life.
● Low torques.
● Blowout-proof stem.
● Stem bearing reduces side thrust.
● Multiple solid PTFE or chevron type stem seal (adjustable).
● Live-loaded thrust washer prevents galling and provides secondary stem seal.
● Fully enclosed spiral wound graphite filled stainless body gasket.
● Locking devices optional on NPS 1⁄2– 6 (DN 15–150) valves SB-600 up to NPS 4 (DN 100).
● Air vent on all balls.
● Fire safe to API 607, BS 6755.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
