Ball valve manufacturer

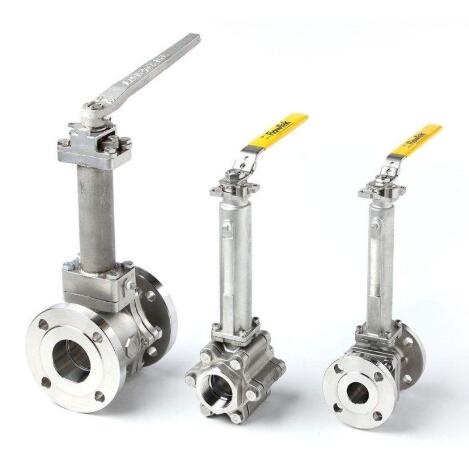

Cryogenic ball valve for LNG service

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:CL150-CL1500
  • Structure:Extended bonnet structure
  • Medium:LNG,Liquid Oxygen,etc.
  • Temperature :-46℃, -101℃, -196℃.
  • Body material:LCB, LC3, CF8
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:For gas LPG, LNG storage tank
Cryogenic ball valve for LNG service introduction
Cryogenic ball valve for LNG service is suitable for medium temperature -40℃ ~ -196℃,cryogenic ball valve is called low temperature ball valve,which is mainly used for ethylene, liquefied natural gas (LNG) plant, gas LPG, LNG storage tanks to accept base and goonhilly, air separation equipment, oil chemical tail gas separation equipment, liquid oxygen, liquid nitrogen, liquid argon, carbon dioxide cryogenic storage tank and tank lorry, psa oxygen generating device, etc.The output of liquid low-temperature media such as ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products, not only flammable and explosive, but also in the heating to gasification, gasification, the volume expansion of hundreds of times.

Size: 1/2 ~ 24 "(DN15 to 24"))
Pressure grade: 150~1500LB(PN16~PN250)
Connection: Flanged, welded, threaded.
Cryogenic ball valve materials: LCB, LC3, CF8.
Working temperature: -46℃, -101℃, -196℃.
Applicable medium: liquefied natural gas, ethylene, propylene, etc.
Driving mode: manual,gear, bevel gear, electric,pneumatic.

Cryogenic ball valve for LNG service Structural design feature
Cryogenic ball valve for LNG service is divided into low-temperature cryogenic floating ball valve  and low-temperature cryogenic trunnion ball valve. For the temperature is higher than -50℃, the long-neck structure is generally not adopted. For the ball valve with the temperature lower than -50℃, the neck length T is generally 250mm, or determined by the design and calculation of our company.Low temperature ball valve is mainly used to output liquid low temperature medium such as ethylene, liquid oxygen, liquid hydrogen, liquid nitrogen, liquid ammonia, liquid propane, liquefied natural gas, liquefied petroleum products, etc., not only flammable and explosive, and in the heating to gasification, gasification, the volume expansion of hundreds of times.
Material selection
The material of liquefied natural gas valve is very important, the material is not qualified, will cause the outer leakage or inner leakage of the shell and sealing surface;The comprehensive mechanical properties, strength and steel degree of the parts can not meet the use requirements or even fracture.Causes the liquefied natural gas medium to leak causes the explosion.Therefore, in the development, design and development of LIQUEFIED natural gas valve process, material is the primary key problem.Valve body and bonnet: LCB(-46℃), LC3(-101℃), CF8 (304) (-196℃).
Low temperature treatment
Our factory to the production of low-temperature valves through special low-temperature treatment, the rough machining parts in the cooling medium for several hours (2-6 hours), to release the stress, to ensure the low-temperature performance of materials, to ensure the precision machining size, in case of the valve in low-temperature working conditions, caused by temperature deformation caused by leakage.

Cryogenic ball valve for LNG service main part material
No Part name AS to ASTM SS to ASTM
1 Body Type A352 LCB Type A352 LC3 Type F304(L) Type F304(L)
2 Bonnet Type A352 LCB Type A352 LC3 A182 F304(L) A182 F304(L)
3 Bolt A193L7 A193 3 B8 A193 B8 A193 B8M
4 Nut A193L7 A194 8 A194 8 A194 8M
5 Seal ring/Gasket RTFE+Cu/Nylon/1010/PPL
6 Ball A182 F304 A182 F304(L) A182 F304(L) A182 F316(L)
7 Shaft A182 F304 A182 F304(L) A182 F304(L) A182 F316(L)
8 Packing RTFE+Cu/Nylon1010/PPL/Graphite
9 Gland A105N A351 CF8
10 Lever A193 L7 A193 B8 A193 B8 A193 B8
11 Suitable temperature ≥-40°C ≥-101°C ≥-196°C

Cryogenic ball valve for LNG service part design characteristics
1.Cryogenic ball valve for LNG service body:
Cryogenic ball valve for LNG service is of full size structure. The ball valve has no obstruction at full open position. The internal size conforms to API6D regulations.The valve body can be made into a one-piece structure, two-piece or three-piece structure, etc., to reduce the leakage point.The ball valve has top mounted type and side mounted type structure, which can realize online replacement of internal seals. The ultra-low temperature ball valve with nominal diameter ≥NPS2 is designed as a fixed ball.
2.Cryogenic ball valve for LNG service stem:
Cryogenic ball valve for LNG service is equipped with extended stem for the purpose of protecting the stuffing box.Ensure that the temperature of the stuffing box is above 0℃, so that the stuffing can work normally.The design of the extended stem is mainly about the length of the neck, which is related to the thermal conductivity, thermal conductivity area, surface heat dissipation coefficient, heat dissipation area and other factors of the material. The calculation is quite complicated, which is generally obtained by the experimental method or by adopting relevant standards.
3.Cryogenic ball valve for LNG service drop plate:
The Cryogenic ball valve for LNG service and the extended bonnet are provided with a drip tray to prevent condensed water from flowing into the insulation layer.The location of the drop plate also indicates the highest location of the cryogenic ball valve for on-site insulation material.Drill a connecting hole on the valve cover to connect the extended cavity with the ball valve to ensure that abnormal pressure boost will not occur to the extended cavity.
4.Cryogenic ball valve for LNG service self-relief
The relief of the abnormal pressure boost in the middle cavity is realized by the self-relief valve seat. The self-relief direction of the middle cavity is the upstream pipeline.
5.Cryogenic ball valve for LNG service stem seal:
The Cryogenic ball valve for LNG service stem is sealed with low leakage and low maintenance structure.According to the specific size of the design of two or more channels of sealing, so that the valve stem sealing class to meet iso15848-2 B requirements, but also to prevent water from water pressure test into the flexible graphite packing, durability class to meet ISO15848-1 C01 class.A disc spring is arranged at the bolt connection of the packing press plate to compensate the load and avoid the influence of the active load under the alternating temperature.
6.Cryogenic ball valve for LNG service anti-static device:
Antistatic devices (steel ball and spring) are provided at the stem/ball junction and stem/bonnet contact to prevent static electricity from accumulating on the ball.Under the 12 v dc testing, the spheroid and valve cover and the resistance value between the valve stem and valve cover not more than 10 Ω.Ultra-low temperature fixed ball valves shall also be designed to meet the API6FA or API607 standard safety fire protection structures.
7.Cryogenic ball valve for LNG service Seat seal:
In the ultra-low temperature state, the valve seat and body with the sealing ball valve lip sealing ring, is the most appropriate choice.The precision of lip seal ring itself is high, and the precision and surface finish of matching metal parts are also high.The seat ring material is made of ultra-low temperature PCTFE (KEL-F) which can be used between -196-300℃.
8.Cryogenic ball valve for LNG service mechanism:
Cryogenic ball valve for LNG servicecan operate normally when the stem is at an Angle of 30° from the vertical line.Manual ball valves (including actuators and gear drives) shall be equipped with locking devices so that ultra-low temperature ball valves can be locked in full open or full closed positions.The actuator can be replaced and maintained online and can operate under freezing conditions.
