Ball valve manufacturer

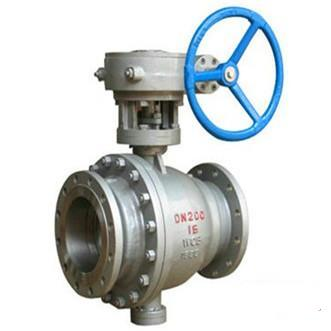

Trunnion mounted cast steel ball valve

  • Port size:DN50~600, NPS 2〞~ 24〞
  • Pressure:PN16 ~ 64 CLASS 150/300LB/600LB
  • Structure:Trunion mountedFull or reduced bore
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:Different actuator is optional
Trunnion mounted cast steel ball valve introduction
Trunnion mounted cast steel ball valve is full port ( FP) or reduced bore (RB), two piece Split body or three piece bolted body, Trunnion mounted cast steel ball valve is trunnion Mounted type,blow-out proof stem, anti-staic, optional bocking device or stem extension, optional direct mounting to ISO 5211 structure,Trunnion mounted cast steel ball valve is a form of quarter-turn valve which uses a hollow or Solid, perforated and floating ball to control flow through it. Trunnion mounted cast steel ball valve is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the ball valve handle.

Trunnion mounted cast steel ball valve Material: CF8/CF8M/CF3/CF3M/LCB/WCB, LCB, WC6, WC9 or others,Trunnion mounted cast steel ball valve operated by: Manul operated Ball Valve, Gear, Worm Operated Ball Valve,Pneumatic Actuator operated ball valve, hydraulic and Electric actuator operated ball valve.

Trunnion mounted cast steel ball valve structue peroformance
Nominal Diameter: DN50-DN600 2''-24''
Ball valve type: Trunnion mounted ball, full or reduced bore
Connection: Flange,BW.SW
Nominal pressure: PN16,PN25,PN40,PN64
Class150 Class300 Class600
10K/20K/30K
Valve Body Material: WCB,WCC,CF8,CF3,CF8M,CF3M or others
Seal Material: PTFE, RPTFE, PPL, Delvon, PEEK,metal seated.
Medium temperature: -46ºC-+180ºC(soft seated),-40ºC-+450ºC(metal seated)
Working Medium: air, steam, water, gases, oil, dust, corrosive medium, etc.
Driver Connection: ISO  5211
Valve Inspection: API598,ISO/DIN 5208-1987
Standards: GB,DIN,ANSI,JIS
Application Field:  Water,Oil Gas etc...


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
