Ball valve manufacturer

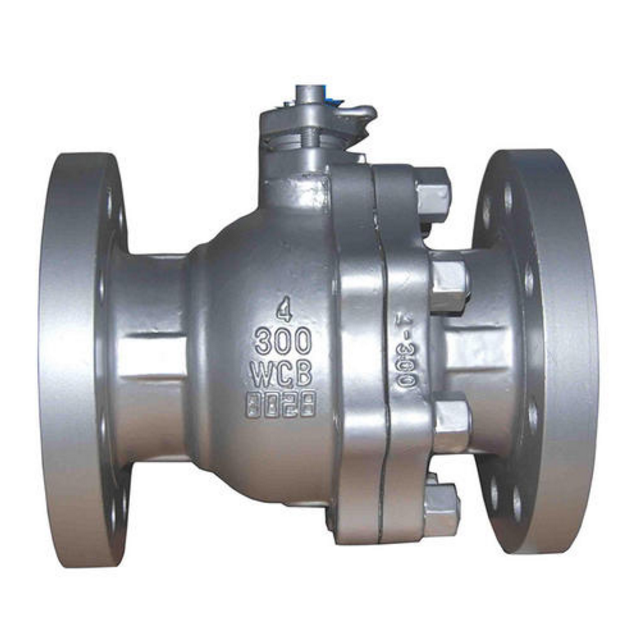

CL150 CL300 WCB cast steel ball valve

Port size：1/2'' ~ 24''( 15mm ~ 600mm)
Pressure：Class 150 ~ Class 300
Structure：Full bore, floating,2PC
Medium：Water,oil,steam,gas
Temperature :-29～180℃
Body material：WCB or Other material
Connection：Flange or others
Feature：ISO 5211 direct mount is optional

Product Description

CL150 CL300 WCB cast steel ball valve introduction
CL150 CL300 WCB cast steel ball valve is full port ( FP) or reduced bore (RB), two piece Split body or three piece bolted body, floating ball type or Trunnion Mounted type is optional, blow-out proof stem, anti-staic, optional bocking device or stem extension, optional direct mounting to ISO 5211 structure,CF8 CF8M CF3 CF3MCL150 CL300 WCB cast steel ball valve a form of quarter-turn valve which uses a hollow or Solid, perforated and floating ball to control flow through it.CL150 CL300 WCB cast steel ball valve is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the ball valve handle.

CL150 CL300 WCB cast steel ball valve operated by: Manul operated Ball Valve, Gear, Worm Operated Ball Valve,Pneumatic Actuator operated ball valve, hydraulic and Electric actuator operated ball valve.

CL150 CL300 WCB cast steel ball valve structue performance

Nominal Diameter:	DN15-DN600 1/2''-24''
Ball valve type:	Floating ball or Trunnion mounted ball, full or reduced bore
Connection:	Flange,BW.SW
Nominal pressure:	Class150 Class300
Valve Body Material	WCB or others
Seal Material:	PTFE, RPTFE, PPL, Delvon, PEEK,metal seated.
Medium temperature:	-29ºC-+180ºC(soft seated)
Working Medium:	air, steam, water, gases, oil, dust, corrosive medium, etc.
Driver Connection:	ISO 5211
Valve Inspection:	API598,ISO/DIN 5208-1987
Standards:	GB,DIN,ANSI,JIS
Application Field:	Water,Oil Gas etc...

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
