Ball valve manufacturer

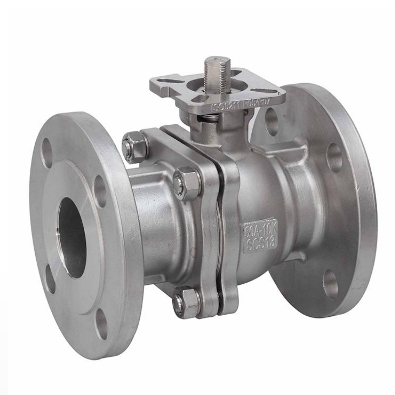

JIS 5K 10K 16K Cast steel ball valve

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:JIS 5K 10K 16K
  • Structure:Floating ball,2PC/3PC,FB/RB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Feature:ISO 5211 direct mount is optional
JIS 5K 10K 16K Cast steel ball valve introduction
JIS 5K 10K 16K Cast steel ball valve is Japanese standard ball valve with floating ball, full port ( FP) or reduced bore (RB), JIS 5K 10K 16K Cast steel ball valve istwo piece Split body or three piece bolted body, blow-out proof stem, anti-static, optional bocking device or stem extension, optional direct mounting to ISO 5211 structure,JIS 5K 10K 16K Cast steel ball valve a form of quarter-turn valve which uses a hollow or Solid, perforated and floating ball to control flow through it.JIS 5K 10K 16K Cast steel ball valve is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the ball valve handle.

JIS 5K 10K 16K Cast steel ball valve material is WCB,WCC,CF8 CF8M CF3 CF3M or other material,JIS 5K 10K 16K Cast steel ball valveoperated by: Manul operated Ball Valve, Gear, Worm Operated Ball Valve,Pneumatic Actuator operated ball valve, hydraulic and Electric actuator operated ball valve.

JIS 5K 10K 16K Cast steel ball valve structue performance
Nominal Diameter: DN15-DN400 1/2''-16''
Ball valve type: Floating ball, full or reduced bore
Connection: Flange,BW.SW
Nominal pressure: JIS 5K 10K 16K
Valve Body Material WCB,WCC,CF8,CF3,CF8M,CF3M or others
Seal Material: PTFE, RPTFE, PPL, Delvon, PEEK,metal seated.
Medium temperature: -46ºC-+180ºC(soft seated)
Working Medium: air, steam, water, gases, oil, dust, corrosive medium, etc.
Driver Connection: ISO  5211
Valve Inspection: API598,ISO/DIN 5208-1987
Standards: GB,DIN,ANSI,JIS
Application Field:  Water,Oil Gas etc...


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
