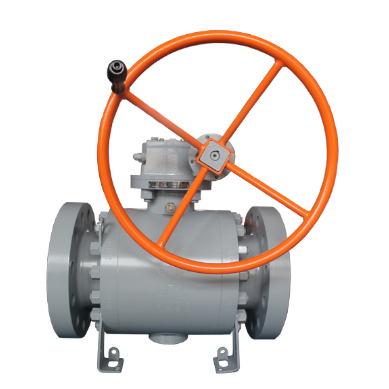

DN400 16 Inch cast steel ball valve

Port size：400 (16'')
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Cast steel
Connection：Flanged end or others
Feature：Full bore or reduced bore is optional

Product Description

China cast steel ball valve manufacturer,factory and supplier for DN400 16 Inch cast steel ball valve with full port ( FP) or reduced bore (RB), two piece Split body or three piece bolted body, floating ball type or Trunnion Mounted type is optional, blow-out proof stem, anti-staic, optional bocking device or stem extension, optional direct mounting to ISO 5211 structure,DN400 16 Inch cast steel ball valve is a form of quarter-turn valve which uses a hollow or Solid, perforated and floating ball to control flow through it.Full bore cast steel ball valve is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the ball valve handle.

DN400 16 Inch cast steel ball valve Material: CF8/CF8M/CF3/CF3M/LCB/WCB, LCB, WC6, WC9 or others,Full bore cast steel ball valve operated by: Manul operated Ball Valve, Gear, Worm Operated Ball Valve,Pneumatic Actuator operated ball valve, hydraulic and Electric actuator operated ball valve.

DN400 24 Inch cast steel ball valve structue performance

Nominal Diameter:	DN400 16''
Ball valve type:	Floating ball or Trunnion mounted ball, full or reduced bore
Connection:	Flange,BW.SW
Nominal pressure:	Class150- Class2500
Valve Body Material:	WCB,WCC,CF8,CF3,CF8M,CF3M or others
Seal Material:	PTFE, RPTFE, PPL, Delvon, PEEK,metal seated.
Medium temperature:	-46ºC-+180ºC(soft seated),-196ºC-+450ºC(metal seated)
Working Medium:	air, steam, water, gases, oil, dust, corrosive medium, etc.
Driver Connection:	ISO 5211
Valve Inspection:	API598,ISO/DIN 5208-1987
Standards:	GB,DIN,ANSI,JIS
Application Field:	Water,Oil Gas etc...
