Ball valve manufacturer

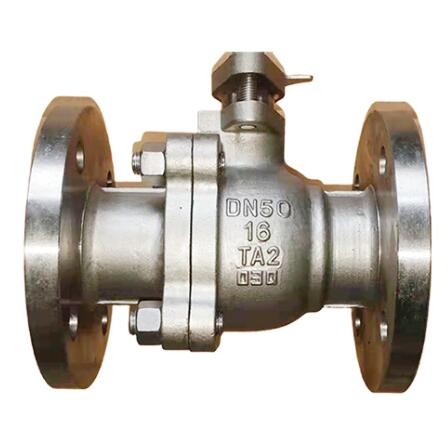

Titanium Ball Valve TA2 PN16 DN50 65 80

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating,full bore
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:Titanium Alloy TA2 or other grade
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:Different titanium material is optional
China titanium Ball Valve manufacturer, factory and supplier. Titanium Ball Valve TA2 PN16 DN50 65 80 is widely used in chlor-alkali industry, soda industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc. Commonly used titanium and titanium alloy ball valve materials are: TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4.

Titanium Ball Valve TA2 DN50 65 80 Design Feature:

Floating type or Trunnion type

Full bore or Reduced bore

Side entry

Split body construction(2-PC or 3-PC)

Blow-out proof stem

Anti-static device

Fire safe design or Non-fire safe design

Soft seated or metal seated

Ends: Flanged, Wafer, Thread, BW, SW

Offer different type of titanium ball valve operated by: Lever, Gear, Electric actuator, Pneumatic actuator, Bare shaft

Design fully complies with ASME B16.34 or API 6D

Tested and inspected in accordance with API 598 or API 6D

Size/pressure produce range as below table


Titanium Ball Valve TA2 DN50 65 80 Specification:

Pressure rating: PN1.6-10.0Mpa   Class150-600Lb

Nominal Size: DN15-DN600   NPS1/2"-24"

Driving mode: Handle, worm gear, pneumatic, hydraulic, electric

Applicable medium: oxidizing corrosive medium.



Titanium Ball Valve TA2 DN50 65 80 Main material:

Body, cover: TA1, TA2, TA10, Gr2, Gr3

Ball: TA1, TA2, TA10, Gr2, Gr3

Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5

Sealing ring: PTFE, RPTFE, PPL, PEEK.......


Corrosion Resistance Characteristics of Titanium Ball Valve

Titanium Ball Valve is almost no corrosion in the atmosphere, freshwater, seawater, high-temperature water vapor.

Titanium ball valves and titanium valves are very resistant to corrosion in alkaline media.

Titanium Ball Valve has strong anti-ion ( Cl ) ability and excellent resistance to ion corrosion.

The corrosion resistance of the titanium alloy floating ball valve in the reducing acid depends on whether the medium has a corrosion inhibitor

Lightweight, high mechanical strength, wide application, military field.
