Ball valve manufacturer

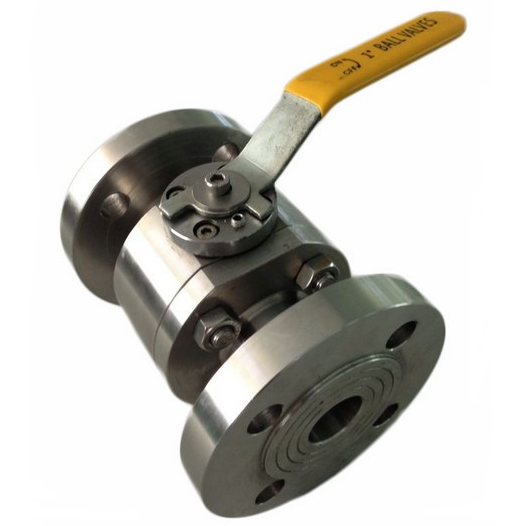

Monel 400 Monel K500 ball valve

  • Port size:1/2'' ~ 12''( 15mm ~ 300mm)
  • Pressure:Class 150 ~ Class 2500
  • Structure:Floating ball,2PC/3PC,FB/RB
  • Medium:Severe working condition
  • Temperature :-10~425℃
  • Body material:Monel 400 Monel K500
  • Connection:Flange or others
  • Feature:Good corrosion resistance
Monel 400 Monel K500 ball valve introduction
Monel 400 Monel K500 ball valve to hydrofluoric acid (HF), uranium fluoride (UF6, UF4), dilute sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, strong alkaline solution, salt water, sea water and halogen elements have excellent corrosion resistance, Monel 400 Monel K500 ball valve is widely used in petrochemical industry, Key positions in pipeline systems of large modern enterprises such as petroleum refining, atomic energy industry and pharmaceutical industry.
Monel 400 Monel K500 ball valve can be classified into two categories:One is the whole of monel alloy made ball valve.The other is ball valve with inner parts made of Monel alloy.Both are called Monel alloy ball valve.

Monel 400,Monel K500 material for Monel 400 Monel K500 ball valve is a single phase solid solution ni-Cu alloy, which has good corrosion resistance in many medium environments.Corrosion resistance ranges from mild oxidizing medium environment to neutral environment to suitable reducing environment. The strength in the annealed state is very low, and for this reason the material often requires a tempering treatment to increase its strength.

Monel 400 Monel K500 ball valve feature
1. Good corrosion resistance under Marine and chemical environment;
2. Monel 400 Monel K500 ball valve is not sensitive to chloride ion stress corrosion cracking;
3. Excellent mechanical properties from below zero to 550℃;
4. Monel 400 Monel K500 ball valve is approved by ASME to be used as a pressure vessel at -10~425℃;
5. Good machining and welding performance.

Monel 400 Monel K500 ball valve specification:
Product Name Monel 400 Monel K500 ball valve
1. Material Monel 400 Monel K500
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port,redured port
4. Working Pressure 150LB~2500LB
5. Connection Ends Flange
6. Working Temp.  -10~425℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

Monel 400 Monel K500 ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Monel 400 Monel K500 ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves
