Ball valve manufacturer

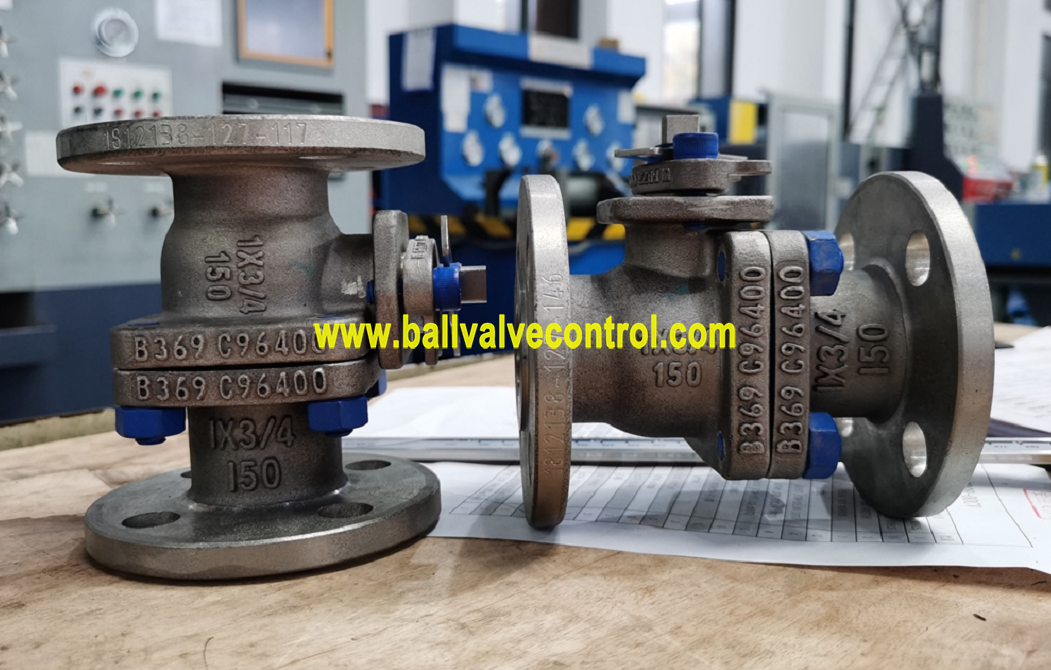

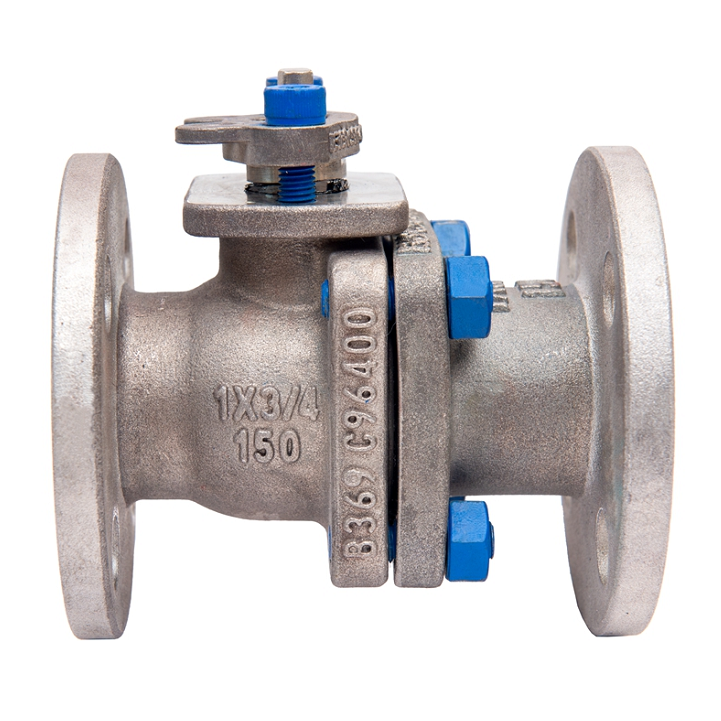

C964 C96400 Alloy Copper Nickel ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:CL150-CL2500
  • Structure:Floating,full or reduced bore,2PC
  • Medium:sea water or other medium
  • Temperature :-29~150℃,-40~450℃
  • Body material:C964 C96400 Alloy Copper Nickel
  • Connection:Flange or others
  • Feature:high corrosion resistance in seawater
C964 C96400 Alloy Copper Nickel ball valve introduction:
C96400 Copper Nickle alloy ball valve has high corrosion resistance in seawater, fresh water and vapor, but poor cutting ability, C96400 Copper Nickle alloy ball valve chemical composition copper Cu: residual nickel + cobalt NiCo:29.0-32.0 Tin Sn:≤0.03 Zinc Zn:≤0.3 lead Pb:≤0.02 phosphorus P:≤0.006 Iron Fe:0.5-1.0 Manganese Mn:0.5-1.2 Silicon Si:≤0.15 sulfur S:≤0.01 carbon C:≤0.05 Note :≤0.7(impurity) Performance: tensile strength.C96400 Copper Nickle alloy ball valve has high mechanical properties, wear reduction properties and corrosion resistance, free cutting, good brazing and welding properties, small shrinkage coefficient of chemical aluminum powder manufacturers, non-magnetic.Obviously, smelting white copper requires higher melting temperature, so the refractory material with higher refractoriness should be selected for manufacturing lining.Tin bronze: The crystallization characteristics are large crystallization temperature range, wide solidification area, poor fluidity in casting performance, easy to shrink loose, not easy to oxidize, the process characteristics is the thick wall of directional solidification (sequential solidification).

C964 C96400 Alloy Copper Nickel ball valve specification:
Product Name C964 C96400 Alloy Copper Nickel ball valve
1. Material C964 C96400 Alloy Copper Nickel
2. Size 1/2~24 inch ( DN15~DN600)
3. Port Full Port,redured port
4. Working Pressure 150LB~2500LB
5. Connection Ends Flange
6. Working Temp.  -10~425℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

C964 C96400 Alloy Copper Nickel ball valve standard
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

C964 C96400 Alloy Copper Nickel ball valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

C964 C96400 Alloy Copper Nickel ball valve

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves
