Ball valve manufacturer

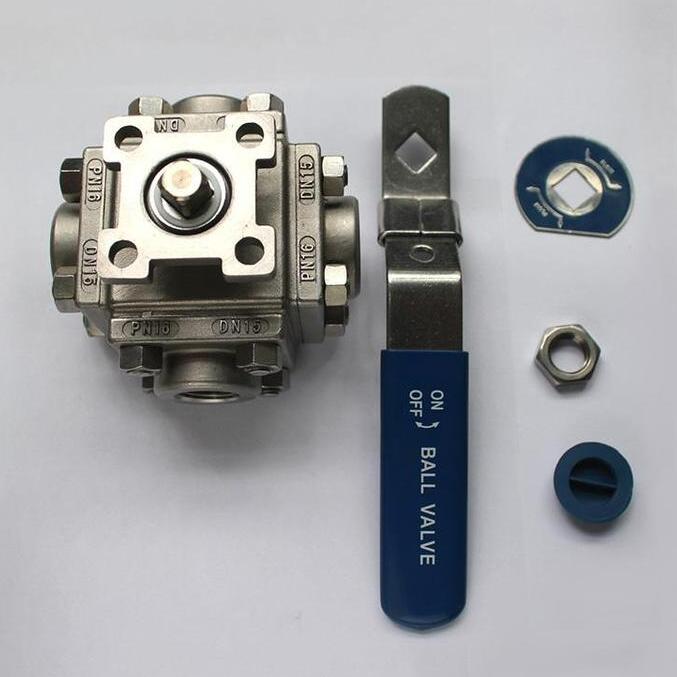

Threaded stainless steel 4 way ball valve

  • Port size:1/2"-2''
  • Pressure:PN16 ~ 40,150LB ~ 300LB
  • Structure:L or X port
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC
  • Body material:Stainless Steel
  • Connection:Threaded or others
  • Feature:4 way Compact structure
Threaded stainless steel 4 way ball valve inlet way often being orthogonal to the plane of the outlets. For special applications, such as driving air-powered motors from forward to reverse, the operation is performed by rotating a single lever four-way valve. Threaded stainless steel 4 way ball valve has two L-shaped ports in the ball that do not interconnect, sometimes referred to as an "×" port.

Threaded stainless steel 4 way ball valve Descriptions:
1) Design standard: ASME B16.34, API608
2) Threads ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
5) Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
6) Working pressure: 16 bars
7) Seat Material: PTFE,RPTFE,PPL
8) Working temperature: -20 to 180°C(PTFE)  ,-20 to 220°C(PPL)
9) Working medium: Water, Oil, Gas, Steam, Acid, etc

Threaded stainless steel 4 way ball valve Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Reduce Bore
4) Threaded type: NPT,PT,BSP,BSPT,DIN is available

Threaded stainless steel 4 way ball valve material:

No. Parts                                Material
1 Body CF8M/316 CF8/304 WCB
2 Cap CF8M/316 CF8/304 WCB
3 Ball 316 304
4 Stem 316 304
5 Gland Nut 304
6 Nut 304
7 Spring Washer 304
8 Handle 304
9 Seat RPTFE/PTFE
10 Stem Packing PTFE
11 Gasket PTFE
12 Thrust Washer PTFE
