Ball valve manufacturer

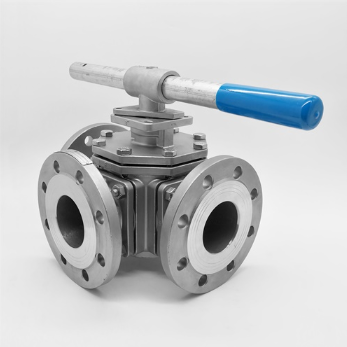

Lever 3 way stainless steel ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:3 way:T Port or L port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange or others
  • Feature:Need confirm the flow direction
Lever 3 way stainless steel ball valve introduction
Lever 3 way stainless steel ball valve is on base of full bore design with CF8 CF8M CF3 CF3M or other material. Lever 3 way stainless steel ball valve can choose T port or L port structure according to the flow direction.T port 3 way stainless steel ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way stainless steel ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Lever 3 way stainless steel ball valve Specification:
Product Name Lever 3 way stainless steel ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

Lever 3 way stainless steel ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Lever 3 way stainless steel ball valve flow structure
Lever 3 way stainless steel ball valve flow structure

Lever 3 way stainless steel ball valve dimension
 Lever 3 way stainless steel ball valve dimension


Our product range:
Shanghai Huixuan is 3 way ball valve factory, China 3 way Ball valve manufacturer mainly produce 3 way pneumatic ball valve,3 way electric ball valve,3 way floating ball valve,3 way trunnion ball valve,3 way high pressure ball valve,3 way cryogenic ball valve,3 way PTFE lined ball valve,3 way cast steel ball valve,3 way stainless steel ball valve,3 way forged steel ball valve, other 3 way ball valves.
