Ball valve manufacturer

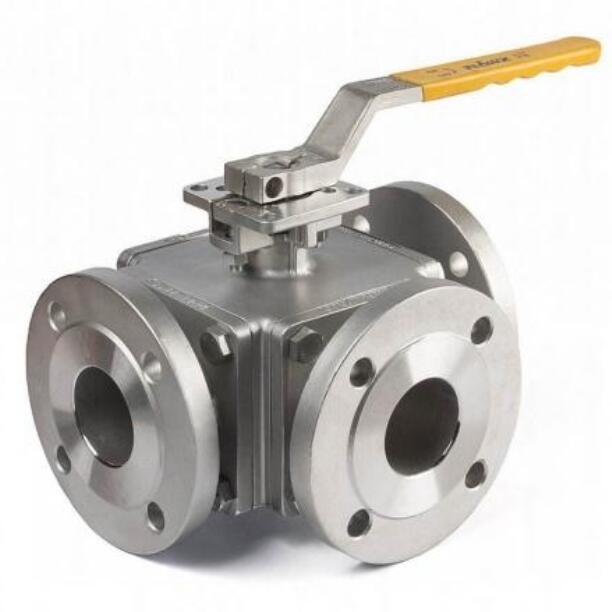

Three way ball valve manufacturer in China

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:China 3 way ball valve manufacturer
China 3 way ball valve manufacturer and factory,Three way ball valve manufacturer in China for pneumatic three way ball valve,electric three way ball valve,L port three way ball valve,T port three way ball valve,high pressure three way ball valve,PTFE lined three way ball valve,cast steel three way ball valve,stainless steel three way ball valve,forged steel three way ball valve and other 3 way ball valves.

Threee way ball valve is on base of full bore design with T port or L port design.3 way ball valve can choose T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Three way ball valve Specification:
Product Name Three way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, A105,etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

Three way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
