Ball valve manufacturer

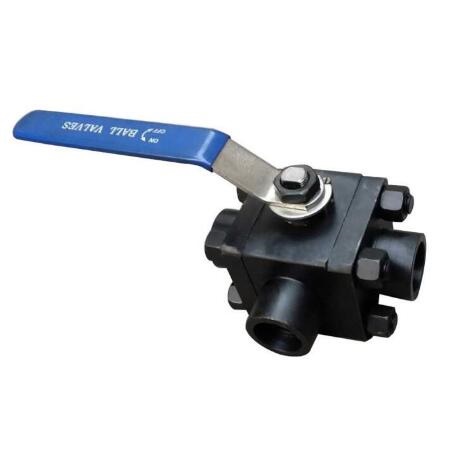

China forged steel 3 way ball valve

  • Port size:1/2"~4" (DN15~DN100)
  • Pressure:CL150-CL2500,PN10-PN420
  • Structure:3 way:T Port or L port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:A105 LF2 F304 F316 F316L or others
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:China forged steel 3 way ball valve factory
China 3 way forged steel ball valve manufacturer,company and supplier for L port forged steel 3 way ball valve,T port forged steel 3 way ball valve,China forged steel 3 way ball valve is on base of full bore design with T port or L port design.3 way ball valve can choose T port or L port structure according to the flow direction.T port forged steel 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port forged steel 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

China forged steel 3 way ball valve Specification:
Product Name China forged steel 3 way ball valve
1. Material A105,F304,F316,F316L,etc.
2. Size 1/2~4 inch ( DN15~DN100)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange,Threaded,weleded end
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

China forged steel 3 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
