Ball valve manufacturer

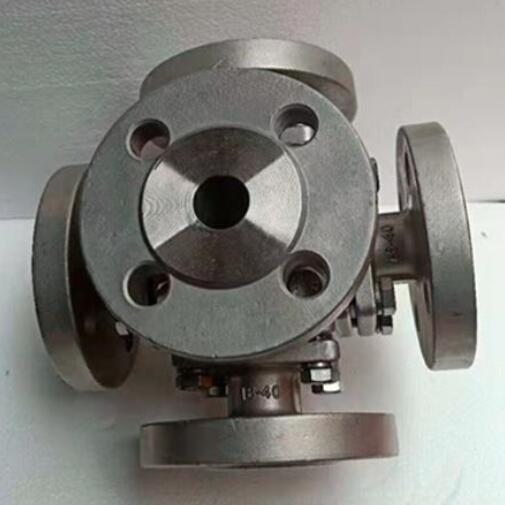

5 Way Stainless Steel Ball Valve

Port size：DN15-DN300
Pressure：PN10-PN64 CL150-CL600
Structure：5 way
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：CF8,CF8M,CF3,CF3M etc.
Connection：Flange,Thread,SW,BW is optional
Feature：Different material is optional

Product Description

5 Way stainless steel ball valve manufacturer, factory and supplier. 5 Way stainless steel ball valve adopts imported advanced technology, reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. 5 way Stainless steel ball valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. With standard ISO high platform and locking device. 5 Way stainless steel ball valve can set 90° switch positioning structure, according to the need to lock to prevent misoperation, driving mode: manual, electric actuator, pneumatic actuator.

5 way stainless steel ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

5 way stainless steel ball valve Specification:

Product Name	5 way Stainless steel ball valve
1. Material	CF8,CF8M,CF3,CF8M,etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	PN10-PN64, 150LB~600LB
5. Connection Ends	Flange, theaded or welded end
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092
