Ball valve manufacturer

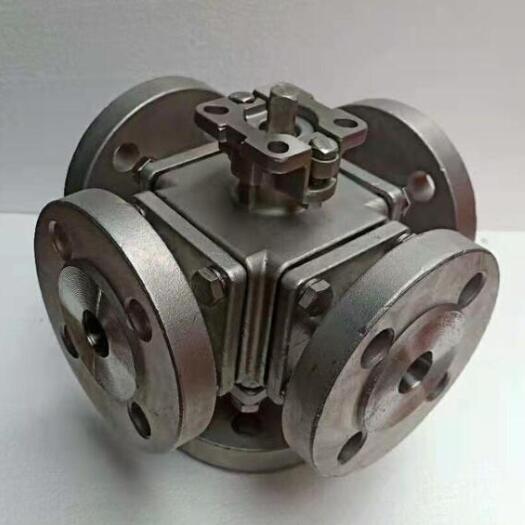

Multi-Port 5 way ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:5 way ball valve
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:China 5 way ball valve manufacturer
China 5 way ball valve manufacturer,factory,company and supplier,Multi-Port 5 way ball valve is a true multi-way ball valve with balanced 4-seat construction.Multi-Port 5 way ball valve is available in a variety of flow plans which can replace multiple 2-way valves in a process system. A standard ISO 5211 pattern mounting pad allows for easy assembly of pneumatic and electric actuators.

Multi-Port 5 way ball valve Specification:
Product Name Multi-Port 5 way ball valve
1. Material WCB,WCC,CF8,CF8M,CF3,CF8M,etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

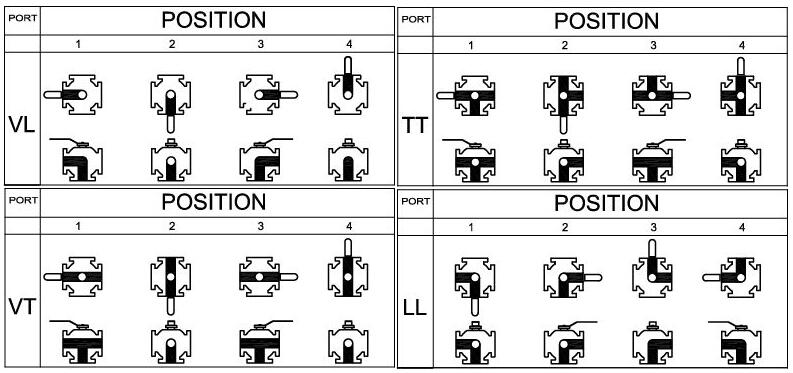

Multi-Port 5 way ball valve flow direction

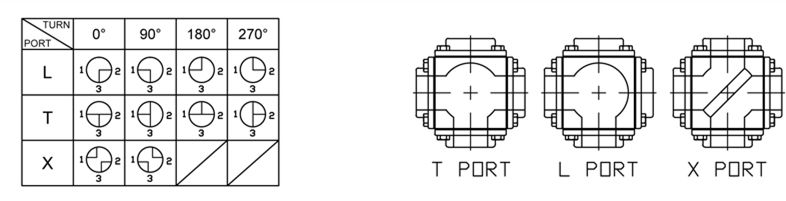

5 way ball valve flow direction
5 way ball valve flow direction


Multi-Port 5 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
