Ball valve manufacturer

China 4 way ball valve manufacturer

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN100 CL150-CL600
  • Structure:4 way:T Port or L port,X port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange or others
  • Feature:ISO 5211 mounting pad is optional
Shanghai Huixuan is China 4 way ball valve manufacturer manufacturer,factory and supplier. Our manufacuting range covers 4 Way Double L Port Ball Valve, 4 Way X Port Ball Valve, 4 Way L Port Ball Valve, 4 Way T Port Ball Valve, 4 Way Pneumatic Ball Valve, Pneumatic Operated 4 Way Ball Valve, Actuator Operated 4  Way Ball Valve, Pneumatic 4 Way Ball Valve, Pneumatic 4 Way Valve, 4 Way Ball Valve Flanged End, 4 Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, 4 Way Fire Safe Ball Valve, Four Way Ball Valve, Four Way Ball Valves, Four Way Ball Valve Manufacturer, Four Way Ball Valve Manufacturers, Four Way Ball Valve Exporter, Four Way Ball Valve Supplier, Four Way Ball Valve Suppliers, Four Way Ball Valve Stockiest, Four Way Double L Port Ball Valve, Four Way X Port Ball Valve, Four Way L Port Ball Valve, Four Way T Port Ball Valve, Four Way Pneumatic Ball Valve, Pneumatic Operated Four Way Ball Valve, Actuator Operated Four  Way Ball Valve, Pneumatic Four Way Ball Valve, Pneumatic Four Way Valve, Four Way Ball Valve Flanged End, Four Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, Four Way Fire Safe Ball Valve, 4 Way Ball Valve India, Four Way Ball Valve Exporter China.

Our 4 way ball valve in Carbon Steel, Stainless Steel and others metal on special request. Stainless steel four way ball valve selection covers Full Port (Full Bore), Flanged End, with Manual Hand Lever, Gear Box, Pneumatic Actuator, Electrical Actuator Operation.

4 way ball valve has an L / T / X (Double L) / Straight Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure.

 T Port 4 Way Ball Valve connect any three ports, L Port 4 Way Ball Valve connect any two side right angle port, X Port 4 Way Ball Valve in side have two L Shaped Port in the ball that do not interconnect, it is also called as X Port Ball Valve.

We also offering 4 way ball valve with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated four way Ball Valve, Pneumatic Actuated 4 Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated 4 Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port 4 Way Ball Valve Pneumaticaly.

4 way ball valve Specification:
Product Name 4 way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

4 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

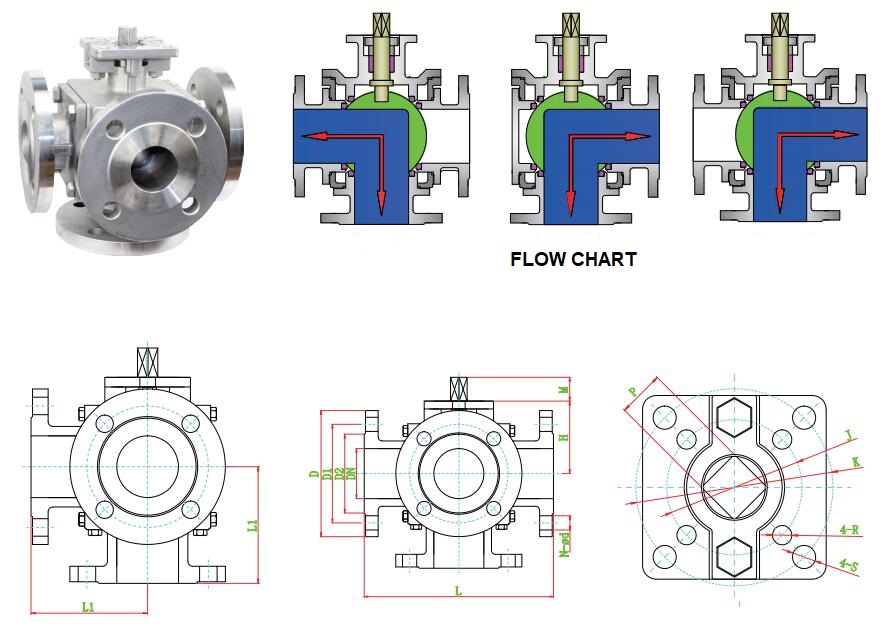

4 way ball valve (X port)  structure
4 way ball valve (X port)  structure

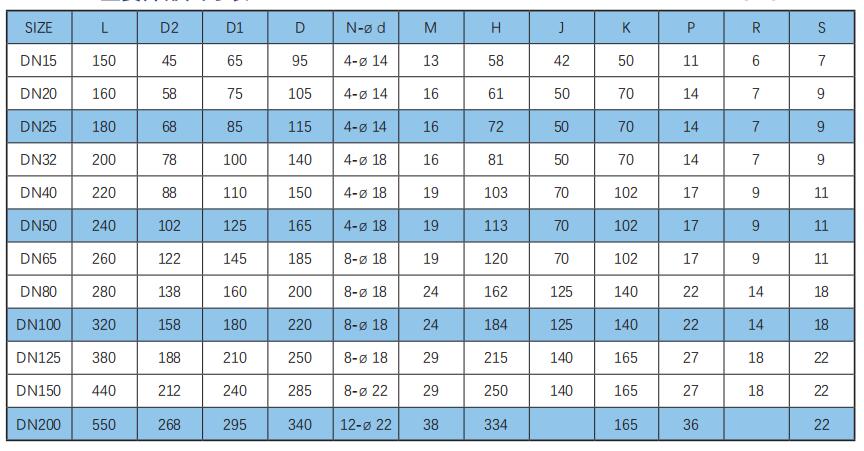

4 way ball valve (X port) dimension (mm)
4 way ball valve (X port) dimension
  (Note,the dimension is on base of PN16, if other pressure class, need consult)

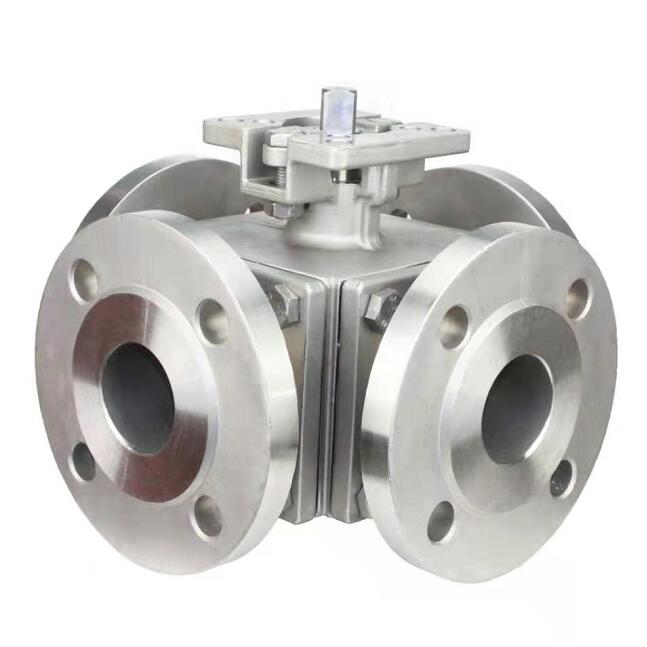

4 way ball valve (L port) structure
4 way ball valve (L port) structure

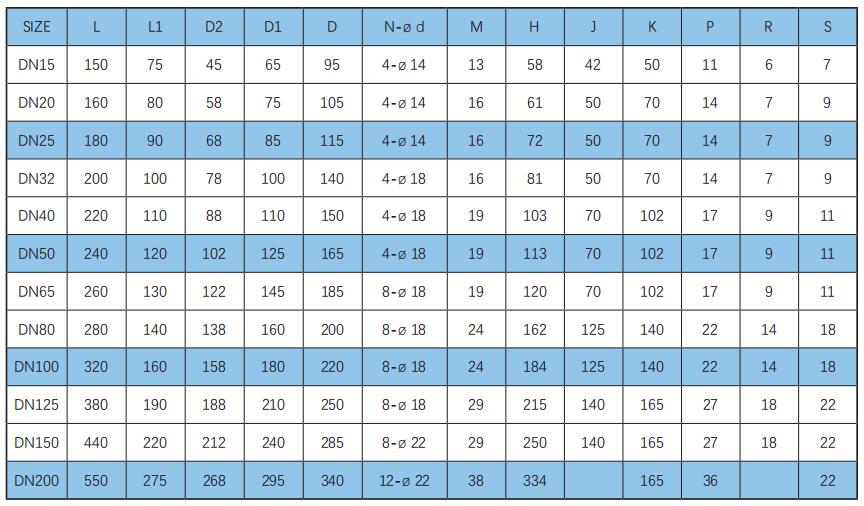

4 way ball valve (L port) dimension (mm)
4 way ball valve (L port) dimension
  (Note,the dimension is on base of PN16, if other pressure class, need consult)
