Ball valve manufacturer

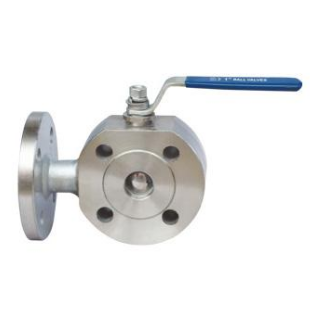

Wafer type 3 way ball valve

  • Port size:1/2'' ~ 8''( 15mm ~ 200mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Structure:3 way:T port of L port
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃,-40~450℃
  • Body material:
  • Connection:Wafer type
  • Feature:Compact structure, short length
Wafer type 3 way ball valve introduction
Wafer type 3 way ball valve has short structure length, simple structure, small volume, small space, light weight, as long as a few parts.And only need to rotate 90° Wafer type 3 way ball valve can quickly switch to the working condition, easy to operate, easy to install, save material and other significant advantages.Wafer type 3 way ball valve can be used in: chemical industry, petrochemical, petroleum, papermaking, mining, electric power, liquefied gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment supporting, electronic industry, urban construction and other fields.

Wafer type 3 way ball valve is T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Wafer type 3 way ball valve Specification:
Product Name Wafer type 3 way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, A105,etc.
2. Size 1/2~8 inch ( DN15~DN200)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange,Wafer
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

Wafer type 3 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

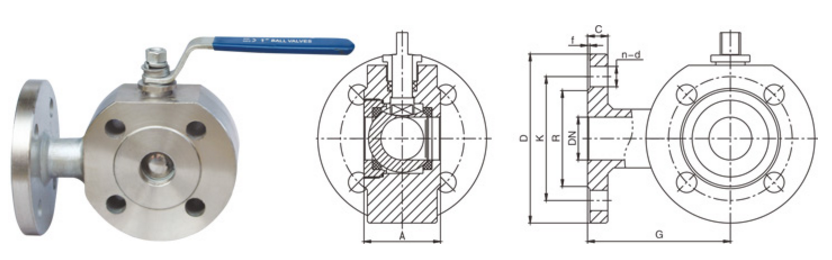

Wafer type 3 way ball valve structure
Wafer type 3 way ball valve



Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
