Ball valve manufacturer

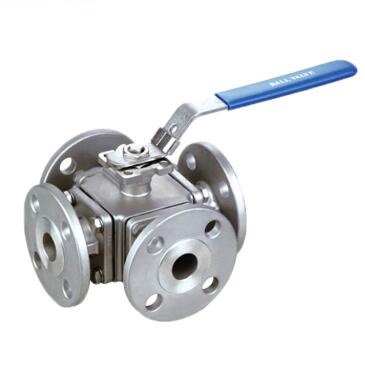

Multiway 4 way flanged ball valve

  • Port size:1/2"~16" (DN15~DN400)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:4 way:T Port or L port,X port
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Connection:Flange or others
  • Feature:China 4 way ball valve manufacturer
Multiway 4 way flanged ball valve,China 4 Way ball valve manufacturer,factory and supplier for Multiway 4 way flanged ball valve with manual hand lever or gear unit operated, depending on ball valve size. We also offering Multiway 4 way flanged ball valve with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated 4 Way ball valve, Pneumatic Actuated Four Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated  Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port Four Way Ball Valve Pneumaticaly.

4 way ball valve factory, China 4 way Ball valve manufacturer mainly produce 4 way pneumatic ball valve,4 way electric ball valve,4 way floating ball valve,4 way cast steel ball valve,4 way stainless steel ball valve,4 way forged steel ball valve, other four way ball valve.

Our manufacuting range covers 4 Way Ball Valve, 4 Way Ball Valves, 4 Way Ball Valve Manufacturer, 4 Way Ball Valve Manufacturers, 4 Way Ball Valve Exporter, 4 Way Ball Valve Supplier, 4 Way Ball Valve Suppliers, 4 Way Ball Valve Stockiest, 4 Way Double L Port Ball Valve, 4 Way X Port Ball Valve, 4 Way L Port Ball Valve, 4 Way T Port Ball Valve, 4 Way Pneumatic Ball Valve, Pneumatic Operated 4 Way Ball Valve, Actuator Operated 4  Way Ball Valve, Pneumatic 4 Way Ball Valve, Pneumatic 4 Way Valve, 4 Way Ball Valve Flanged End, 4 Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, 4 Way Fire Safe Ball Valve, Four Way Ball Valve, Four Way Ball Valves, Four Way Ball Valve Manufacturer, Four Way Ball Valve Manufacturers, Four Way Ball Valve Exporter, Four Way Ball Valve Supplier, Four Way Ball Valve Suppliers, Four Way Ball Valve Stockiest, Four Way Double L Port Ball Valve, Four Way X Port Ball Valve, Four Way L Port Ball Valve, Four Way T Port Ball Valve, Four Way Pneumatic Ball Valve, Pneumatic Operated Four Way Ball Valve, Actuator Operated Four  Way Ball Valve, Pneumatic Four Way Ball Valve, Pneumatic Four Way Valve, Four Way Ball Valve Flanged End, Four Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, Four Way Fire Safe Ball Valve, 4 Way Ball Valve India, Four Way Ball Valve Exporter China.

Multiway 4 way flanged ball valve Specification:
Product Name Multiway 4 way flanged ball valve
1. Material WCB,WCC,CF8,CF8M,CF3,CF8M,etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

Multiway 4 way flanged ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
